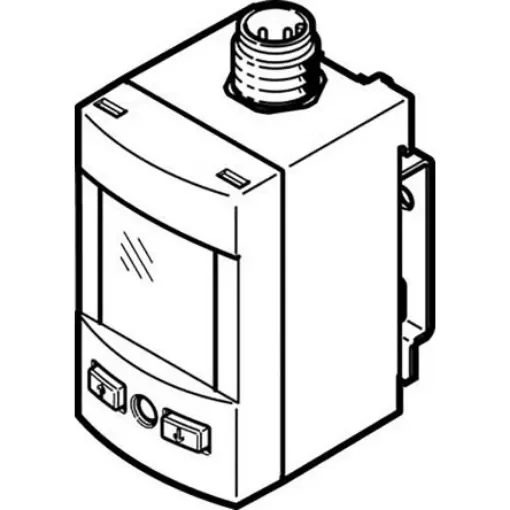

Festo Pressure Sensor, 30V dc, IP65, IP67 0bar - SPAU-V1R-W-G18FD-L-PNLK-PNVBA-M8U

Festo Pressure SensorThe Festo SPAU series pressure sensor is designed to monitor pressure of compressed air and non-corrosive gases. It works on 30V supply voltage. The sensor measures the pressure in range of -1bar to 0bar. It has a switchable element function with normally open or closed contact. The sensor has a G1/8 top pneumatic connection.Features and Benefits• Service temperature ranges between 0°C and 50°C • Input signal converted to digital switching signal • Switching electrical output is of NPN or PNP type • Accuracy is ±1.5% FS • Wall mounting with female thread • M8x1 4-pin round plug connector electrical connection • Illuminated LCD displayApplications• Network and regulator monitoring • Air-pressure test • Object detection via back pressureCertifications• UL approved • IP65 rated • IP67 rated
