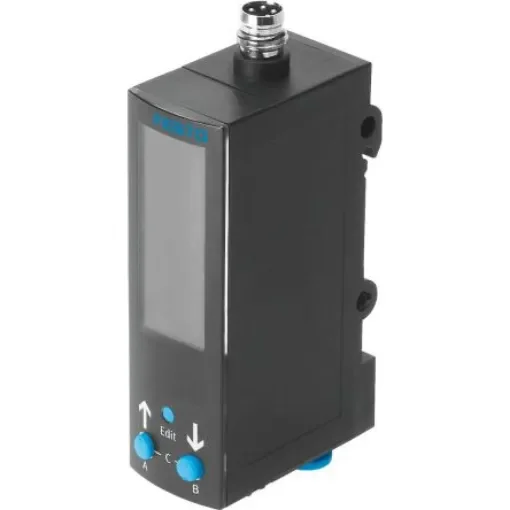

Festo Pressure Sensor, 30V dc, IP65 10bar - SDE3-D10D-B-HQ4-2P-M8

Festo Pressure Sensor The Festo SDE3 series pressure sensor is designed to monitor the pressure of compressed air, sensing relative and differential pressure. It has a switchable element function with normally open or normally closed contact. There are two independent pressure inputs and a two-colour LED display all in one unit. Features and Benefits The pressure sensor works on a 30V supply voltage Pressure measuring range of 0bar to 10bar This sensor has a push-in connector of 4mm via an H rail and has front panel mounting There is a code lock on the sensor to prevent tampering or any changes Alphanumeric pressure display on the sensor for ease of use, via a bar chart Applications The FESTO pressure sensor can be used in a number of industrial applications including • Network and regulator monitoring • Air-pressure test • Object detection via back pressure Pressure Sensor SDE3-D10D-B-HQ4-2P-M8 QS-4 pneumatic connection Service temperature ranges between 0°C and 50°C Freely programmable switching function 2 PNP switching electrical output M8x1 4-pin plug connector electrical connection
