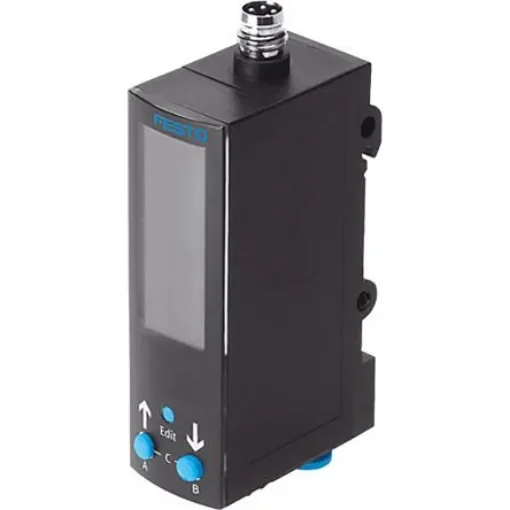

Festo Pressure Sensor, 30V dc, IP65 0bar - SDE3-V1S-B-HQ4-2P-M8
Monitor air pressure accurately with the Festo SDE3 pressure sensor, designed for industrial applications.
Manufacturer part number: SDE3-V1S-B-HQ4-2P-M8
GTIN: 4052568178543
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Suitable Media = Air
Maximum Operating Pressure = 0bar
Minimum Operating Pressure = -1bar
Supply Voltage = 30V dc
IP Rating = IP65
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +50°C
Festo Pressure Sensor The Festo SDE3 series pressure sensor is designed to monitor the pressure of compressed air, sensing relative and differential pressure. It has a switchable element function with normally open or normally closed contact. There are two independent pressure inputs and a two-colour LED display all in one unit. Features and Benefits The pressure sensor works on a 30V supply voltage This sensor has a push-in connector of 4mm via an H rail and has front panel mounting There is a code lock on the sensor to prevent tampering or any changes Alphanumeric pressure display on the sensor for ease of use, via a bar chart Applications The FESTO pressure sensor can be used in a number of industrial applications including • Network and regulator monitoring • Air-pressure test • Object detection via back pressure Pressure Sensor SDE3-V1S-B-HQ4-2P-M8 QS-4 pneumatic connection Service temperature ranges between 0°C and 50°C Freely programmable switching function 2 PNP switching electrical output M8x1 4-pin plug connector electrical connection
