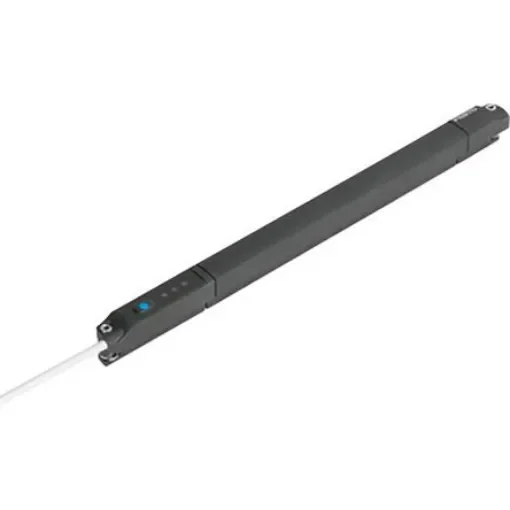

Festo Pneumatic Position Detector, IP65, IP68, 15 to 30V dc, NC, NO, PNP Operation, SDAT-MHS, with LED indicator, - SDAT-MHS-M160-1L-SA-E-0.3-M8

Festo Pneumatic Position DetectorThe Festo SDAT-MHS PNP position transmitter is intended for contactless recording of the piston position of magnetically detectable drives. It is appropriate for use with Festo drives with T-slot (profile slot 8) as well as round cylinders and tie-rod cylinders with mounting kits. It has a 4-pin cable with a plug rotating thread detector. This detector has programmable IO link and switching output with an LED indicator.Features and Benefits• 160mm sensing range • 0.1mA/mm sensitivity • Oil resistant design and high repetition accuracy • 0.3m cable length • Wide range of mounting and connection options • Operating temperature ranges between -20°C and 70°C • Operating voltage ranges between 15VDC and 30VDC • Analogue output ranges between 4 and 20mA • Maximum output current 100mA • PNP type control outputApplications• Food and packaging sector • Energy chain and robots • Medical equipment • Automation industryCertifications• IP65 rated • IP68 rated • RCM • cUL s -listed (OL)
