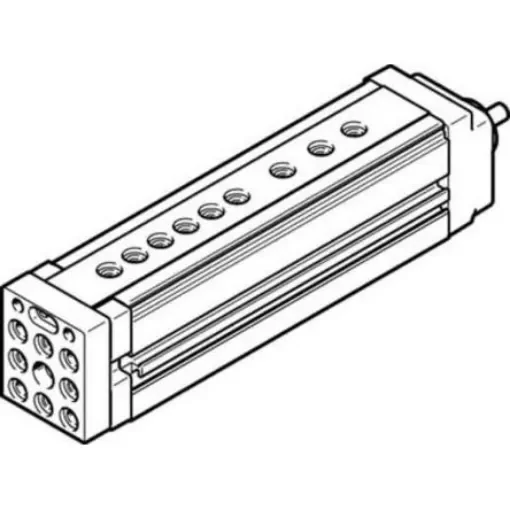

Festo Micro Linear Actuator, 50mm, 2kg, 500mm/s, 562160 - EGSL-BS-35-50-8P
Compact and efficient, this Festo micro linear actuator delivers high performance for precise applications.
Manufacturer part number:
EGSL-BS-35-50-8P
GTIN:
4052568208967
Only Ships to:
France, Monaco
For shipping outside these regions, please contact customer support.
Actuator Type = Micro Linear Actuator
Maximum Stroke Length = 50mm
Maximum Load = 2kg
Series = EGSL
Maximum Speed No Load = 500mm/s
Maximum Force Lifting = 512N
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 562160
The Festo EGSL series mini slide with recirculating ball bearing spindle design structure for proximity sensor. The mini slide is parallel running in the z-direction of 0.02mm.Size=35 Parallelism=0.05 mm Reversing backlash=<= 50 µm
