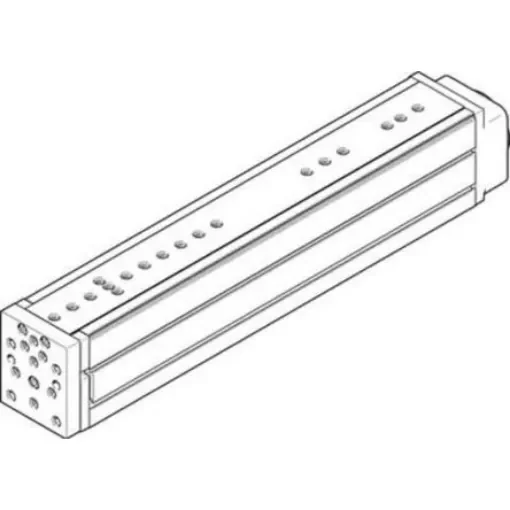

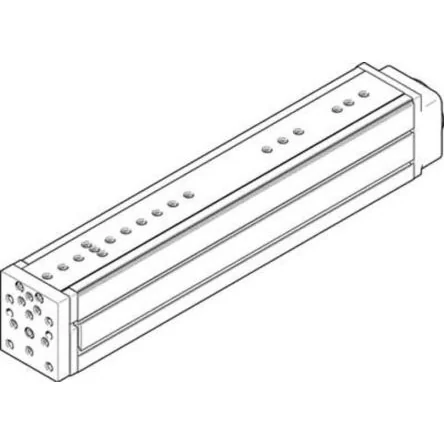

Festo Micro Linear Actuator, 300mm, 14kg, 650mm/s, 562232 - EGSL-BS-75-300-10P
High-performance micro linear actuator with 300mm stroke and 14kg load capacity for precise applications.
Manufacturer part number:
EGSL-BS-75-300-10P
GTIN:
4052568209056
Free shipping
Only Ships to:
France, Monaco, Italy
For shipping outside these regions, please contact customer support.
Actuator Type = Micro Linear Actuator
Maximum Stroke Length = 300mm
Maximum Load = 14kg
Series = EGSL
Maximum Speed No Load = 650mm/s
Maximum Force Lifting = 555N
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 562232
The Festo EGSL series mini slide with recirculating ball bearing spindle design structure for proximity sensor. The mini slide is parallel running in the z-direction of 0.012 mm.Size=75 Parallelism=0.15 mm Reversing backlash=<= 50 µm
