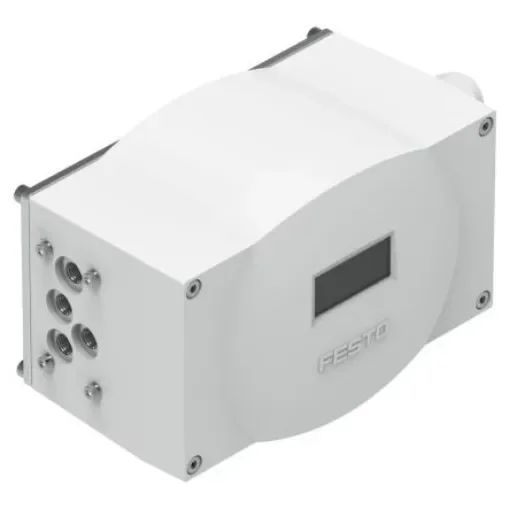

Festo Digital Electropneumatic Positioner Pneumatic Sensor, IP65, 24V dc, Double Acting Operation, CMSX, 3929313 - CMSX-P-S-C-U-F1-D-50-A
The Festo Digital Electropneumatic Positioner ensures precise control for double-acting actuators in various applications.
Manufacturer part number: CMSX-P-S-C-U-F1-D-50-A
GTIN: 4052568273750
Type = Digital Electropneumatic Positioner
Supply Voltage = 24V dc
Manufacturer Series = CMSX
LED Indicator = No
Operation = Double Acting
IP Rating = IP65
Minimum Operating Pressure = 3bar
Minimum Operating Temperature = -5°C
Maximum Operating Temperature = +60°C
Maximum Operating Pressure = 8 bar
Electrical Connection Type = Screw
Model Number p = 3929313
VDI/VDE 3845 (NAMUR), compressed air in accordance with ISO8573-1:2010 [7:4:4]. CMSX Quarter Turn Actuator Positioners. The CMSX positioner for double-acting quarter turn actuators for control of shut off or ball valves in process automation. Features and Benefits. Standard nominal flow rate: 50 L/min ( ; 136-6725 136-6725 and ; 136-6726 136-6726 ), 130 L/min ( ; 136-6728 136-6728 ) Safety instructions: adjustable/opening/closing ( ; 136-6725 136-6725 and ; 136-6726 136-6726 ), retaining ( ; 136-6728 136-6728 ) Setpoint Value: 0 mA to 20 mA, 4 mA to 20 mA, 0 mA to 10 V Ambient temperature: -5 °C to 60 °C Operating Pressure: 3 bar to 8 bar Backlit LCD IP65 protection UV resistant CE Marked to EU directive for EMC RoHS compliant
