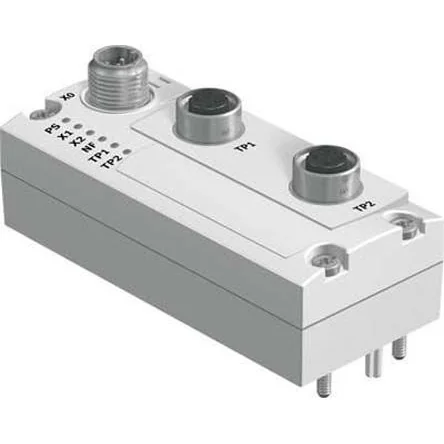

Festo CTEU series Pneumatic Logic Controller - CTEU-PN

Festo Pneumatic Logic Controller - CTEU Series - CTEU-PN This pneumatic logic controller from Festo offers an effective way to manage valves in a pneumatic system. It uses compressed air or liquid rather than electrical current as its control medium, so its safe to use in applications involving combustible materials. The component features a Festo-specific uniformly defined interface (I-Port) that gives you a choice of different valve terminal configurations. It has communication error, undervoltage and systems diagnostic functions. An IP67 rating means its waterproof and dust-proof.• Two M12 x 1 sockets • Cycle time of 1 ms per 1 byte of user data • Maximum of 64-byte inputs and 64-byte outputs transmitted in a cyclic process • Operating voltage range of 18 V DC to 30 V DC • Maximum power supply of 4 A • Operating temperature range of -5°C to +50°C • Weight of 93 g • Polycarbonate material • Dimensions of 40 (length) x 91 (width) x 50 mm (depth) Range Information • The Festo range of CTEU fieldbus modules offers direct and easy networking of valve terminals and other devices via a bus connection • The units are supplied pre-assembled and have been tested for both electrical and pneumatic function • A valve terminal configurator is available online to assist you in selecting the most suitable valve terminal for your needs
