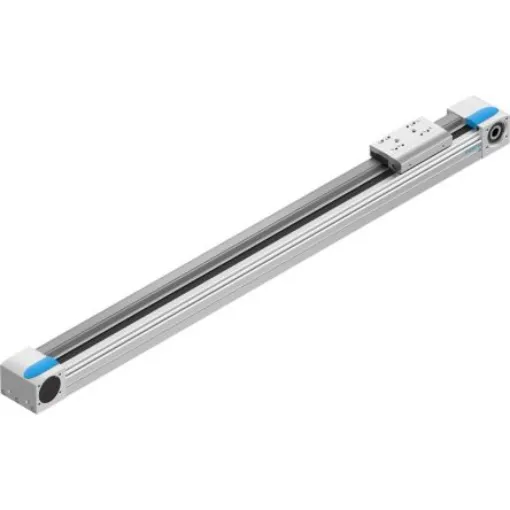

Festo Belt Driven Linear Actuator, 800mm, 5000mm/s, 3013356 - EGC-80-800-TB-KF-0H-GK

Manufacturer: Festo

High-speed Festo belt driven linear actuator with 800mm stroke for efficient automation.

Manufacturer part number: EGC-80-800-TB-KF-0H-GK

GTIN: 4052568268183

Vendor: YACHTNEEDS-RS

Availability: Out of stock

€2110.15

Qty:

i h

Only Ships to: France, Monaco

For shipping outside these regions, please contact customer support.

Actuator Type = Belt Driven Linear Actuator
Maximum Stroke Length = 800mm
Series = EGC
Maximum Speed No Load = 5000mm/s
Maximum Force Lifting = 3050N
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 3013356

The Festo ELGA series toothed belt axis with recirculating ball bearing guide. The effective diameter of drive pinion is 39.79 mm.Working stroke = 400 mm Size = 80 Toothed-belt stretch = 0.168 %
