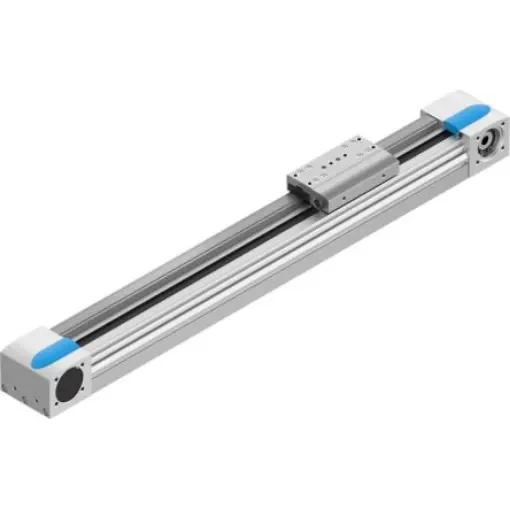

Festo Belt Driven Linear Actuator, 400mm, 5000mm/s, 3012493 - EGC-70-400-TB-KF-0H-GK
High-speed Festo belt driven linear actuator with 400mm stroke for efficient automation.
Manufacturer part number: EGC-70-400-TB-KF-0H-GK
GTIN: 4052568268107
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Belt Driven Linear Actuator
Maximum Stroke Length = 400mm
Series = EGC
Maximum Speed No Load = 5000mm/s
Maximum Force Lifting = 1850N
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 3012493
The Festo EGC series toothed belt axis with recirculating ball bearing guide. The effective diameter of drive pinion is 28.65 mm.Working stroke = 800 mm Size = 80 Toothed-belt stretch = 0.24 %
