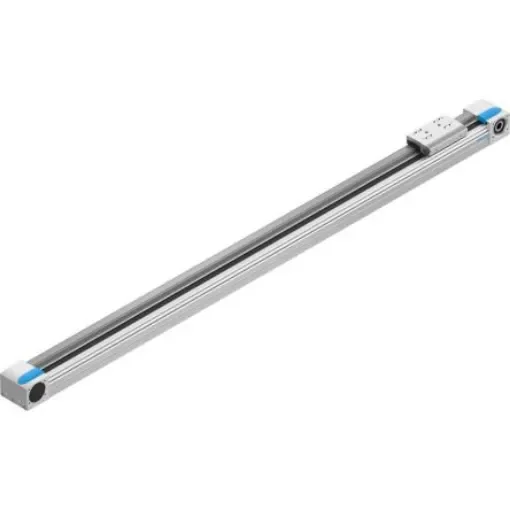

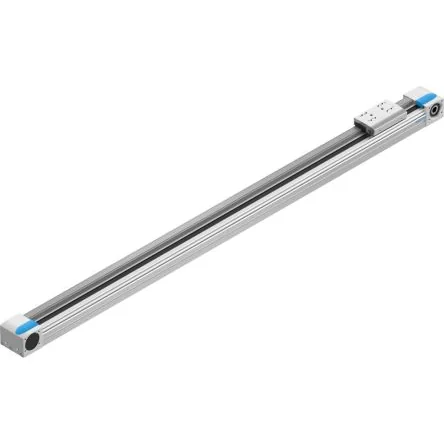

Festo Belt Driven Linear Actuator, 1200mm, 5000mm/s, 3013359 - EGC-80-1200-TB-KF-0H-GK
Experience high-speed automation with the Festo Belt Driven Linear Actuator, featuring a 1200mm stroke length.
Manufacturer part number: EGC-80-1200-TB-KF-0H-GK
GTIN: 4052568268206
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Belt Driven Linear Actuator
Maximum Stroke Length = 1200mm
Series = EGC
Maximum Speed No Load = 5000mm/s
Maximum Force Lifting = 3050N
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 3013359
The Festo EGC series toothed belt axis with recirculating ball bearing guide. The effective diameter of drive pinion is 39.79 mm.Working stroke = 600 mm Size = 120 Toothed-belt stretch = 0.13 %
