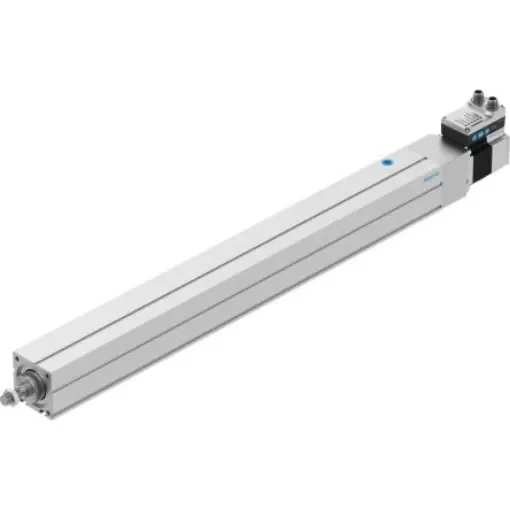

Festo, 500mm, 24V dc, 46kg, 90mm/s, 8118295 - EPCS-BS-60-500-5P-A-ST-M-H1-PLK-AA

Maximum Stroke Length = 500mm
Maximum Load = 46 kg, 120kg
Input Voltage = 24V dc
Series = EPCS-BS
Maximum Speed No Load = 90mm/s
Maximum Force Lifting = 900N
Motor Technology = Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 8118295

The Festo Electric cylinder unit EPCS is extremely low-cost yet high-performance and highly flexible: EPCS. With this the simplicity of pneumatics is combined with the benefits of electrical automation. Highly compact, ideal for small installation spaces. Product of the Simplified Motion Series: does not need any external servo drive or any control cabinet for the installation.Complete solution consisting of integrated actuator, motor and servo drive Extremely cost-effective, yet powerful and highly flexible Ideal for individual linear movements in every installation position and especially for vertical Z movements Precise positioning due to smoothly running ball screw drive Compact dimensions Safe movement due to flexible position sensing Integrated end position sensing
