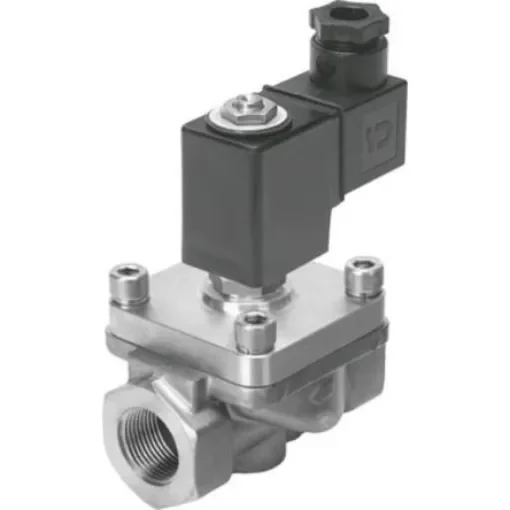

Festo 2/2 Closed, Monostable Pneumatic Solenoid/Pilot-Operated Control Valve - Electrical G 3/4 VZWF Series, 1492249 - VZWF-B-L-M22C-G34-275-V-2AP4-6-R1
Reliable Festo pneumatic solenoid valve for efficient control in various applications.
Manufacturer part number: VZWF-B-L-M22C-G34-275-V-2AP4-6-R1
GTIN: 4052568236496
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Function = 2/2 Closed, Monostable
Connection Port Thread = G 3/4
Actuation Type = Electrical
Manufacturer Series = VZWF
Mounting Style = Inline
Number of Ports = 2
Body Material = Stainless Steel
Maximum Flow Rate = 8020L/min
Solenoid Power Consumption = 16 VA, 19 VA
Minimum Operating Pressure = 0bar
Maximum Operating Pressure = 6 bar°C
Thread Standard = G
The Festo force pilot operated using G3/4 connection solenoid valve that can be used with water, air, and neutral media. It has 2/2 way normally closed and has in-line valve with diaphragm valve design principle. Its nominal size is 27.5mm with maximum operating pressure 6 bar. It used stainless steel housing with a FPM seal and using 110V AC operating voltage.Ambient temperature -10 to 35 °C Protection class IP65
