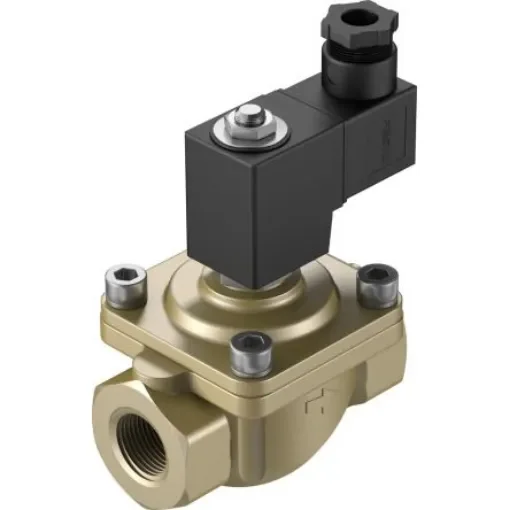

Festo 2/2 Closed, Monostable Pneumatic Solenoid/Pilot-Operated Control Valve - Electrical G 3/4 VZWF Series, 1492129 - VZWF-B-L-M22C-G34-275-E-1P4-6
Reliable Festo monostable solenoid valve for efficient control of air and neutral media.
Manufacturer part number: VZWF-B-L-M22C-G34-275-E-1P4-6
GTIN: 4052568235352
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Function = 2/2 Closed, Monostable
Connection Port Thread = G 3/4
Actuation Type = Electrical
Manufacturer Series = VZWF
Mounting Style = Inline
Maximum Flow Rate = 7.5m³/h
Minimum Operating Temperature = -10°C
The Festo force pilot operated using G3/4 connection solenoid valve that can be used with water, air, and neutral media. It has 2/2 way normally closed and has in-line valve with diaphragm valve design principle. Its nominal size is 27.5mm with maximum operating pressure 6 bar. It used brass housing with a EPDM seal and using 24V DC operating voltage.Ambient temperature -10 to 35 °C Protection class IP65
