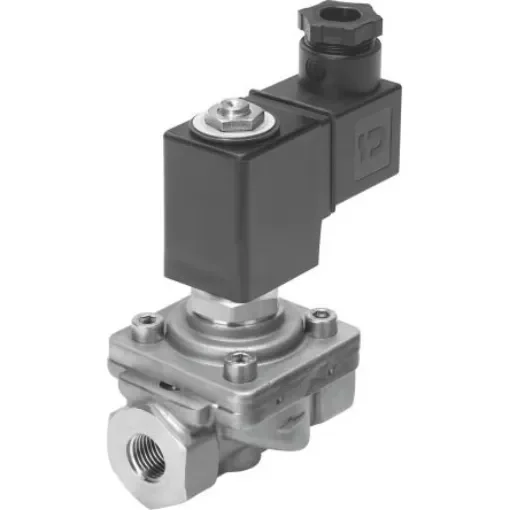

Festo 2/2 Closed, Monostable Pneumatic Solenoid/Pilot-Operated Control Valve - Electrical G 1/4 VZWF Series, 1492118 - VZWF-B-L-M22C-G14-135-1P4-10-R1

Function = 2/2 Closed, Monostable
Connection Port Thread = G 1/4
Actuation Type = Electrical
Manufacturer Series = VZWF
Mounting Style = Inline
Solenoid Fitted = Yes
Number of Ports = 2
Body Material = Stainless Steel
Minimum Operating Pressure = 0bar
Maximum Operating Pressure = 10 bar°C
Thread Standard = G

The Festo force pilot operated using G1/4 connection solenoid valve that can be used with water, air, and neutral media. It has 2/2 way normally closed and has in-line valve with diaphragm valve design principle. Its nominal size is 13.5mm with maximum operating pressure 10 bar. It used stainless steel housing with a NBR seal and using 24V DC operating voltage.Ambient temperature -10 to 35 °C Protection class IP65
