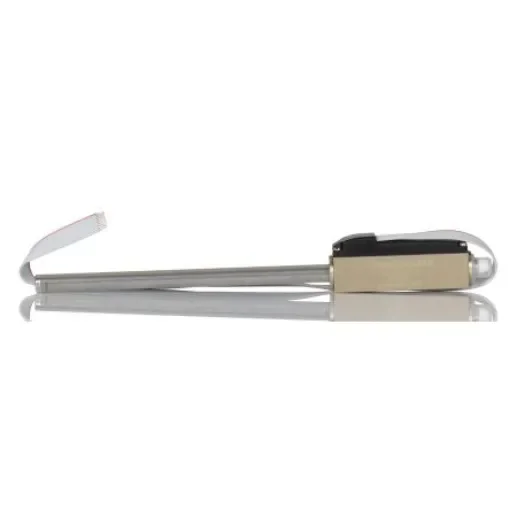

Faulhaber Micro Linear Actuator, 80mm, 0.5kg - LM1247-080-11
Compact and robust micro linear actuator ideal for precise micro-positioning applications.
Manufacturer part number: LM1247-080-11
Actuator Type = Micro Linear Actuator
Maximum Stroke Length = 80mm
Maximum Load = 0.5kg
Series = LM 1247
Linear DC-Servomotors. Innovatively designed with a 3 phase self-supporting coil and non-magnetic steel housing, these DC-Servomotors with QUICKSHAFT technology offer outstanding performance. High performance, miniature, linear motors consisting of a solid stator housing and coil assembly, and a multi-pole magnetic forcer rod. They achieve excellent force and dynamic speed performance due to their high-power magnets. This linear actuator combines the speed and robustness of a pneumatic system with the flexibility and reliability of an electro-mechanical linear motor. Features and Benefits. Analogue Hall Sensors (AHS) High dynamics Excellent force to volume ratio No residual force present Non-magnetic steel housing Compact and robust construction No lubrication required Simple installation and configuration. Product Application Information. Ideal for use in micro-positioning applications due to the absence of residual static force.
