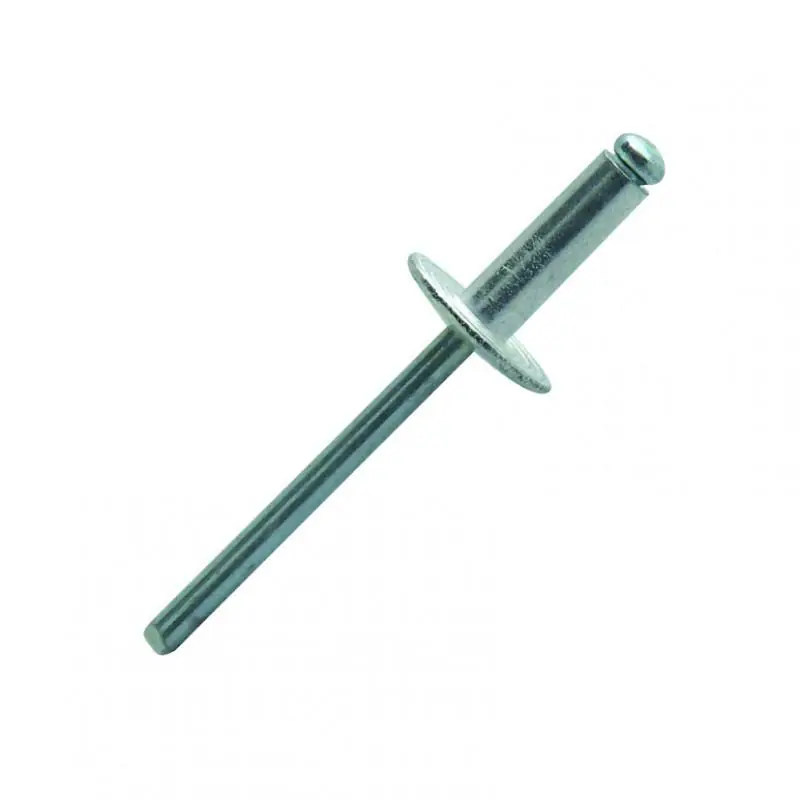

- Key Features:
- Designed for fastening materials with thicknesses ranging from 3.5 to 4.5 mm.
- Large head provides a larger bearing surface, enhancing the rivet's holding capacity.
- Suitable for applications requiring a robust and secure fastening solution.
- Technical Specifications:
- Diameter: 4.0 mm
- Length: 12.0 mm
- Head Diameter: 9.0 mm
- Grip Range: 3.5 to 4.5 mm
- Shear Strength: 203 N
- Tensile Strength: 142 N
- Materials:
- Body: Aluminium alloy AlMg3.5
- Mandrel: White zinc-plated steel with Chrome III coating
- Dimensions:
- Head Diameter: 9.0 mm
- Grip Range: 3.5 to 4.5 mm
- Compatibility Information:
- Ideal for fastening materials with thicknesses between 3.5 and 4.5 mm.
- Suitable for applications requiring a large head rivet for enhanced holding capacity.
- Additional Details:
- Manufactured by FAR S.p.A., a company specializing in blind rivets and fastening systems.
- Product code: 504400803
