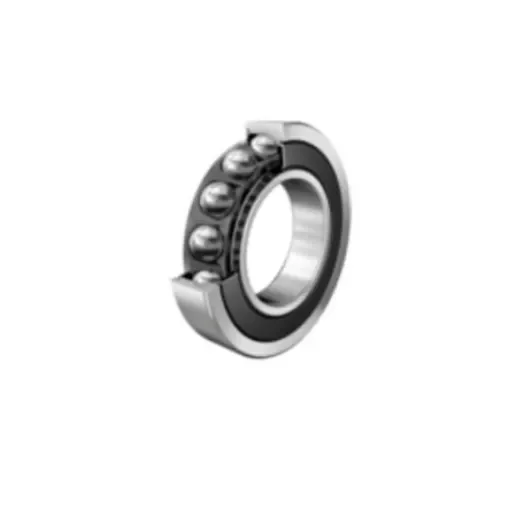

FAG 7308-B-XL-2RS-TVP Single Row Angular Contact Ball Bearing- Both Sides Sealed 40mm I.D, 90mm O.D

Inside Diameter = 40mm
Outside Diameter = 90mm
Race Width = 23mm
Ball Bearing Type = Single Row Angular Contact Ball Bearing
Sealing Arrangement = Both Sides Sealed
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Plastic
Number of Rows = 1
Static Load Rating = 34.5kN
Dynamic Load Rating = 57kN
Bore Type = Parallel
Bearing Series = 3 Medium
Partial Bearing Code = 7308

Bearing arrangements must support combined loads, i.e. radial and axial loads acting simultaneously Moderate to high axial loads are present on one side Rigid axial guidance is required The bearing arrangement must be axially clearance-free or preloaded High speeds are required under higher radial and axial loads The bearing arrangement is to run quietly in addition to meeting the requirements stated above
