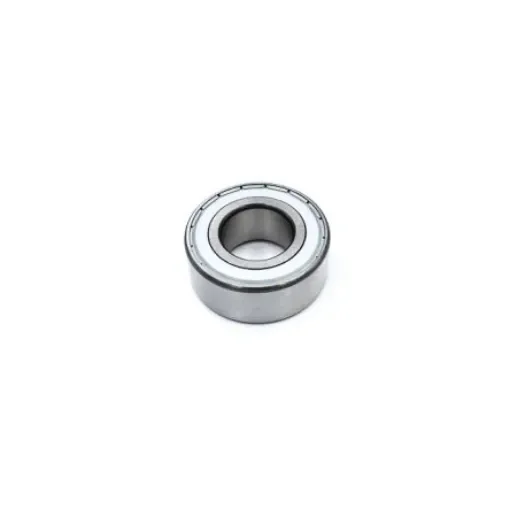

FAG 3205-BD-XL-2Z-TVH Double Row Angular Contact Ball Bearing- Both Sides Shielded 25mm I.D, 52mm O.D

Inside Diameter = 25mm
Outside Diameter = 52mm
Race Width = 20.6mm
Ball Bearing Type = Double Row Angular Contact Ball Bearing
Sealing Arrangement = Both Sides Shielded
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Steel
Number of Rows = 2
Static Load Rating = 15.2kN
Dynamic Load Rating = 22kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 3205

Double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide or sheet steel cages. Their construction is similar to a pair of single row angular contact ball bearings in an O arrangement but they are narrower to a certain extent. The bearings are available in open and sealed designs. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Sealed bearings are maintenance-free and therefore allow particularly economical bearing arrangements. Due to the raceway geometry and the two rows of balls, the bearing can support forces in both radial and axial directions. They are therefore particularly suitable for use in pumps and agricultural machinery. The angular adjustment facility of angular contact ball bearings is very limited. The adjustment angle should not exceed 2'. Bearings of X-life quality have improved running accuracy and optimised surfaces. This gives a significant increase in the fatigue limit load of the bearings. In terms of the expanded adjusted rating life, values up to 50% are achieved. In certain applications, this means that a smaller bearing arrangement can be designed.
