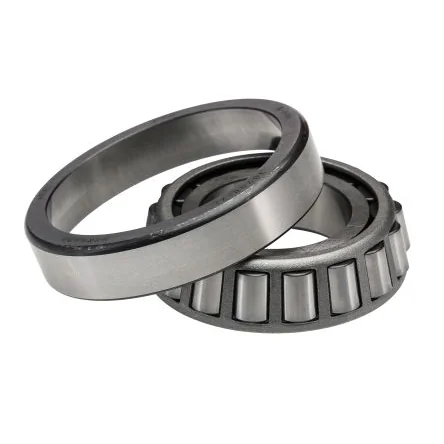

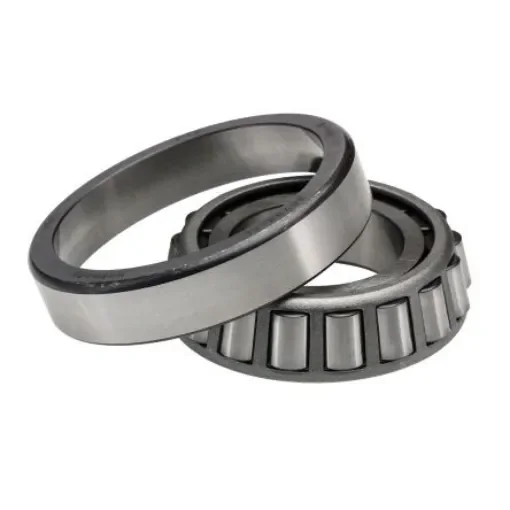

FAG 30208-XL 40mm I.D Taper Roller Bearing, 80mm O.D
High-performance FAG taper roller bearing with 40mm I.D for superior load support.
Manufacturer part number: 30208-XL
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 40mm
Roller Bearing Type = Taper
Race Width = 19.75mm
Static Load Rating = 67000N
Dynamic Load Rating = 77000N
End Type = Sealed
Limiting Speed = 11600rpm
Maximum Speed - Oil = 9600rpm
Tapered Roller Bearings. FAG by Schaeffler tapered roller bearings feature a high radial and axial load carrying capacity and a large usable speed range. They are efficient at supporting forces and ensure a precise and rigid shaft guidance system due to the large effective distance between the bearings. They are adjustable, can be dismantled, and are therefore easy to fit. Features and Benefits. Increase in dynamic load ratings of up to 20%. Lower operating costs. Reduced maintenance due to improved lubrication. Lower heat generation. Less noise. Operating temperature: -30 °C to +120 °C. Product Application Information. Tapered roller bearings can support axial loads from one direction and high radial loads. They are normally axially adjusted against another bearing fitted in a mirror image arrangement. Suffixes. A - Modified internal construction. X - External dimensions matched to international standards
