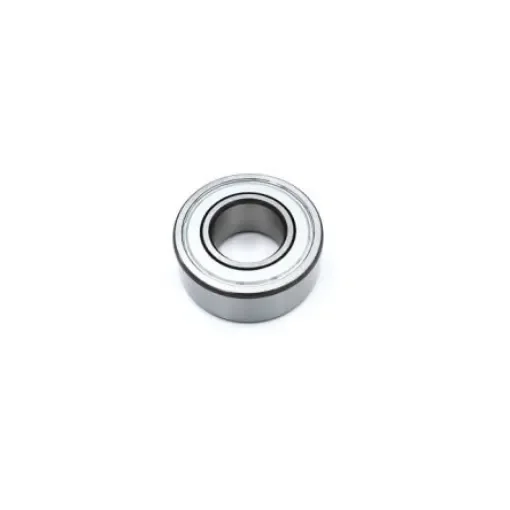

FAG 3004-2Z Double Row Angular Contact Ball Bearing- Both Sides Shielded 20mm I.D, 42mm O.D
High-performance double row angular contact ball bearing for superior load handling.
Manufacturer part number: 3004-2Z
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Inside Diameter = 20mm
Outside Diameter = 42mm
Race Width = 16mm
Ball Bearing Type = Double Row Angular Contact Ball Bearing
Sealing Arrangement = Both Sides Shielded
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Steel
Number of Rows = 2
Static Load Rating = 9.4kN
Dynamic Load Rating = 14.3kN
Bore Type = Parallel
Bearing Series = 0 Extra Light
Partial Bearing Code = 3004
The design envelope is not sufficient under high loads for a pair of single row angular contact ball bearings High radial and axial loads are acting simultaneously Tilting moments must also be supported A relatively rigid bearing arrangement is required The bearing arrangement is to run quietly in addition to meeting the requirements stated above
