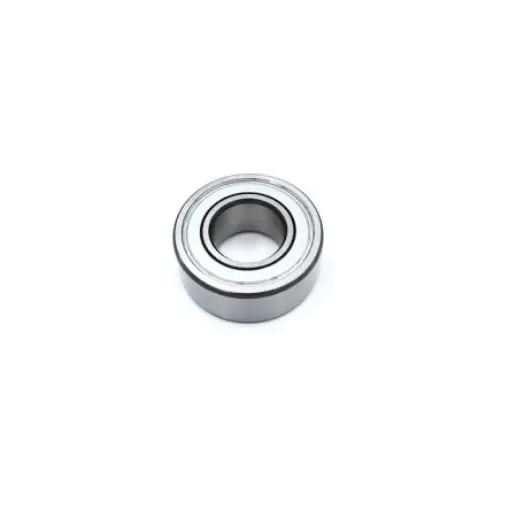

FAG 30/5-B-2Z-TVH-HLC Double Row Angular Contact Ball Bearing- Both Sides Shielded 5mm I.D, 14mm O.D
Durable FAG double row angular contact ball bearing designed for high load applications.
Manufacturer part number: 30/5-B-2Z-TVH-HLC
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Inside Diameter = 5mm
Outside Diameter = 14mm
Race Width = 7mm
Ball Bearing Type = Double Row Angular Contact Ball Bearing
Sealing Arrangement = Both Sides Shielded
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Steel
Number of Rows = 2
Static Load Rating = 940N
Dynamic Load Rating = 1.78kN
Bore Type = Parallel
Bearing Series = 0 Extra Light
Partial Bearing Code = 30/5-B-2Z
The design envelope is not sufficient under high loads for a pair of single row angular contact ball bearings High radial and axial loads are acting simultaneously Tilting moments must also be supported A relatively rigid bearing arrangement is required The bearing arrangement is to run quietly in addition to meeting the requirements stated above
