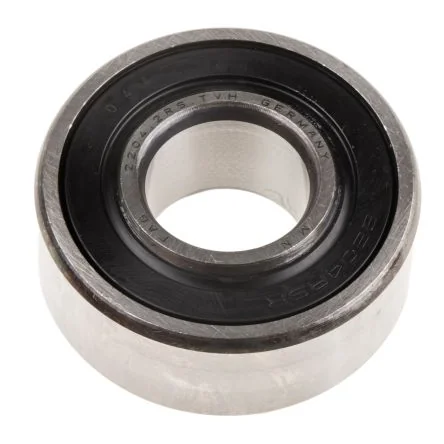

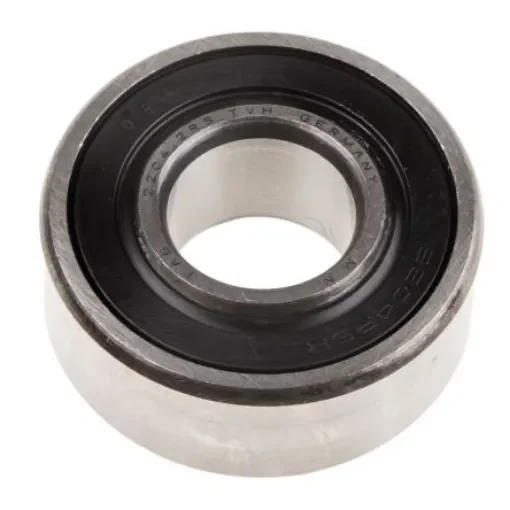

FAG 2204-2RS-TVH Self Aligning Ball Bearing- Both Sides Sealed 20mm I.D, 47mm O.D
Durable FAG self-aligning ball bearing with dual seals for reduced maintenance and improved performance.
Manufacturer part number: 2204-2RS-TVH
Inside Diameter = 20mm
Outside Diameter = 47mm
Race Width = 18mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Both Sides Sealed
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Polyamide
Number of Rows = 2
Static Load Rating = 2.6kN
Dynamic Load Rating = 10.1kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 2204
Self-Aligning Ball Bearings. FAG from Schaeffler self-aligning ball bearings are double row, self-retaining units. They comprise of solid outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. The bearings are available in open and sealed versions. Features and Benefits. • Lower operating costs. • Reduced maintenance due to improved lubrication. • Lower heat generation. • Less noise. • Can support both axial and radial forces. Suffixes. C3 - Radial internal clearance larger than normal. TVH - Solid cage made from glass fibre reinforced polyamide 66. 2RS - Contact seals on both sides
