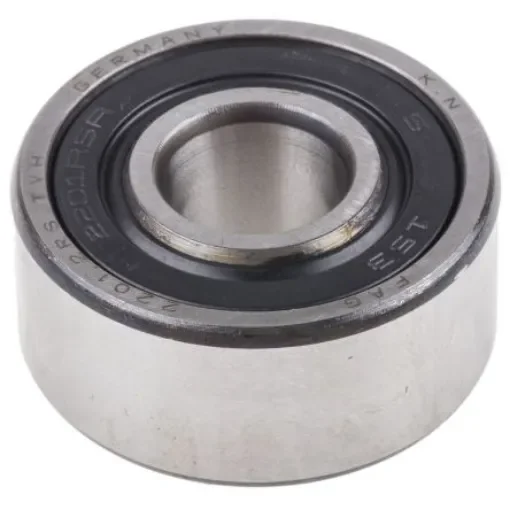

FAG 2201-2RS-TVH Self Aligning Ball Bearing- Both Sides Sealed 12mm I.D, 32mm O.D

Inside Diameter = 12mm
Outside Diameter = 32mm
Race Width = 14mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Both Sides Sealed
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Plastic
Number of Rows = 2
Static Load Rating = 1.27kN
Dynamic Load Rating = 5.7kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 2201

Self-aligning ball bearings are double row, self-retaining units comprising outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. The bearings are available in open and sealed designs.Radial and axial load capacity With cylindrical or tapered bore With adapter sleeve With extended inner ring Sealing Lubrication Compensation of angular misalignments Operating temperature Cages Suffixes
