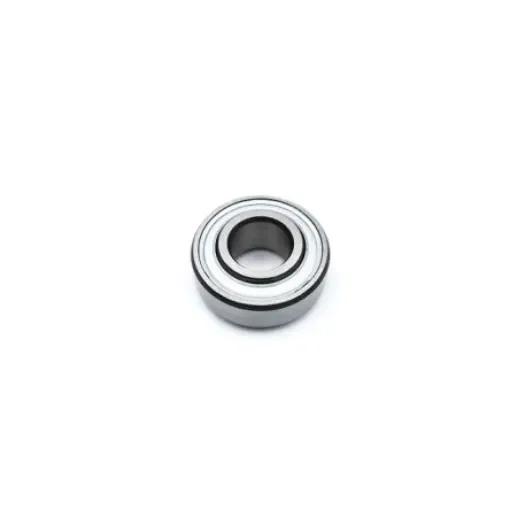

FAG 202-XL-KRR Self Aligning Ball Bearing- Lip Seals On Both Sides 15mm I.D, 35mm O.D

Inside Diameter = 15mm
Outside Diameter = 35mm
Race Width = 14.4mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Lip Seals On Both Sides
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Steel
Number of Rows = 1
Static Load Rating = 3.7kN
Dynamic Load Rating = 8.1kN
Bore Type = Parallel
Bearing Series = 0 Extra Light
Race Type = Plain

Static angular misalignments of the shaft must be compensated, which are caused by mounting inaccuracies and tolerances in the adjacent construction Very good seals are required in environmental conditions such as dust, contamination, moisture, stone impacts and shocks Radial insert ball bearings with a cylindrical outer ring are highly suitable where: A cylindrical housing bore is already present The outer ring of the bearings is to be located by means of easy-to-fit snap rings Radial insert ball bearings with a profiled bore are highly suitable where: Shafts must transmit very high torques Radial insert ball bearings with a rubber interliner are highly suitable where: Vibrations and shocks must be supported Damping of running noise is required
