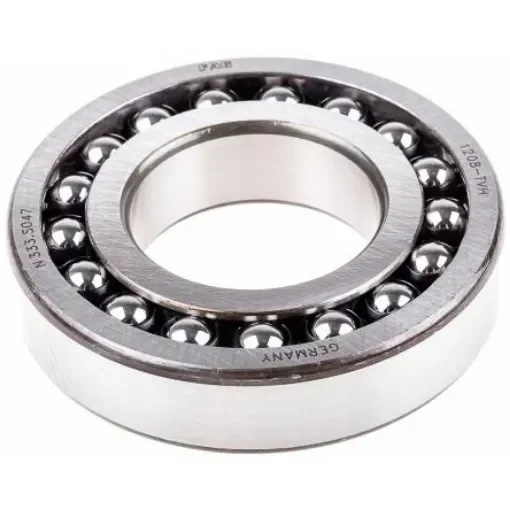

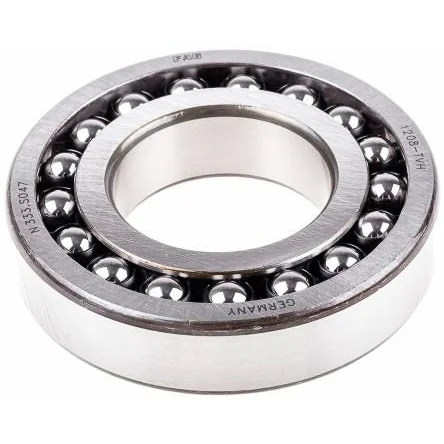

FAG 1209-K-TVH-C3 Self Aligning Ball Bearing- Open Type 45mm I.D, 85mm O.D
Experience enhanced performance with FAG's self-aligning ball bearing, designed for high radial loads and optimal speed.
Manufacturer part number: 1209-K-TVH-C3
Inside Diameter = 45mm
Outside Diameter = 85mm
Race Width = 19mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = C3
Material = Steel
Ball Material = Steel
Cage Material = Polyamide
Number of Rows = 2
Static Load Rating = 7.3kN
Dynamic Load Rating = 22kN
Bore Type = Tapered
Bearing Series = 2 Light
Partial Bearing Code = 1209
If there is skewing between the outer and inner ring (for the compensation of angular misalignments)For bearing arrangements with high radial loadsFor higher speeds on account of their point contact, than barrel roller bearings with line contactWhere bearings with the above-mentioned characteristics are expected to run more quietly and at lower temperatures, even at high speeds
