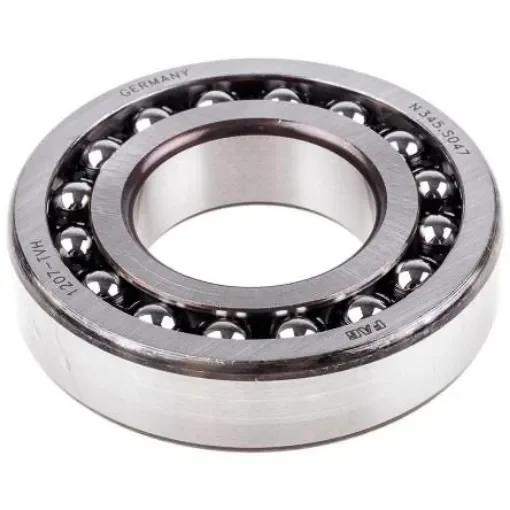

FAG 1207-TVH-C3 Self Aligning Ball Bearing- Open Type 35mm I.D, 72mm O.D
Experience enhanced performance with FAG's self-aligning ball bearing, designed for high radial loads and speeds.
Manufacturer part number: 1207-TVH-C3
Inside Diameter = 35mm
Outside Diameter = 72mm
Race Width = 17mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = C3
Material = Steel
Ball Material = Steel
Cage Material = Polyamide
Number of Rows = 2
Static Load Rating = 5.1kN
Dynamic Load Rating = 16kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 1207
If there is skewing between the outer and inner ring (for the compensation of angular misalignments)For bearing arrangements with high radial loadsFor higher speeds on account of their point contact, than barrel roller bearings with line contactWhere bearings with the above-mentioned characteristics are expected to run more quietly and at lower temperatures, even at high speeds
