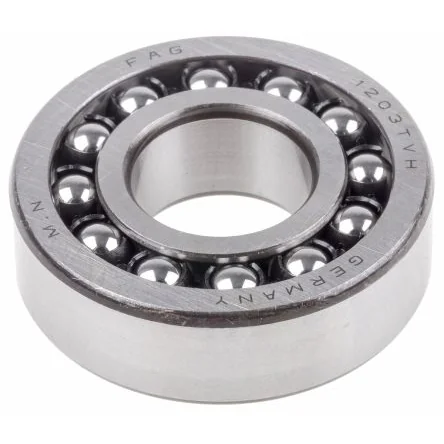

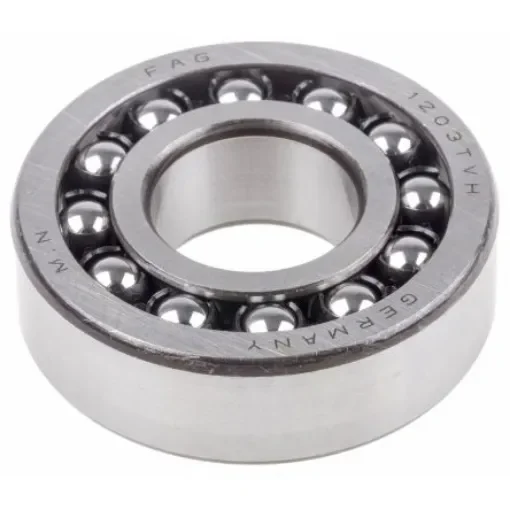

FAG 1203-TVH Self Aligning Ball Bearing- Open Type 17mm I.D, 40mm O.D

Inside Diameter = 17mm
Outside Diameter = 40mm
Race Width = 12mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Polyamide
Number of Rows = 2
Static Load Rating = 2kN
Dynamic Load Rating = 8.1kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 1203

Self-aligning ball bearings are double row, self-retaining units comprising outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. The bearings are available in open and sealed designs.Radial and axial load capacity With cylindrical or tapered bore With adapter sleeve With extended inner ring Sealing Lubrication Compensation of angular misalignments Operating temperature Cages Suffixes
