EXSYS EX-41094: PCI to 4x Serial RS-232 & 1x Parallel Converter

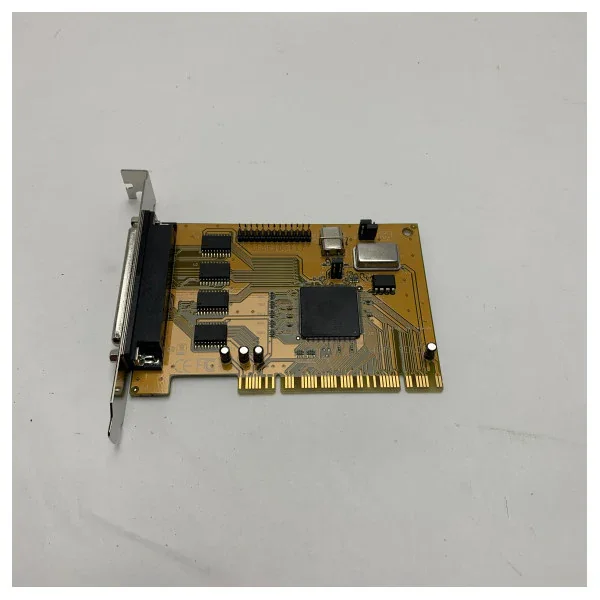

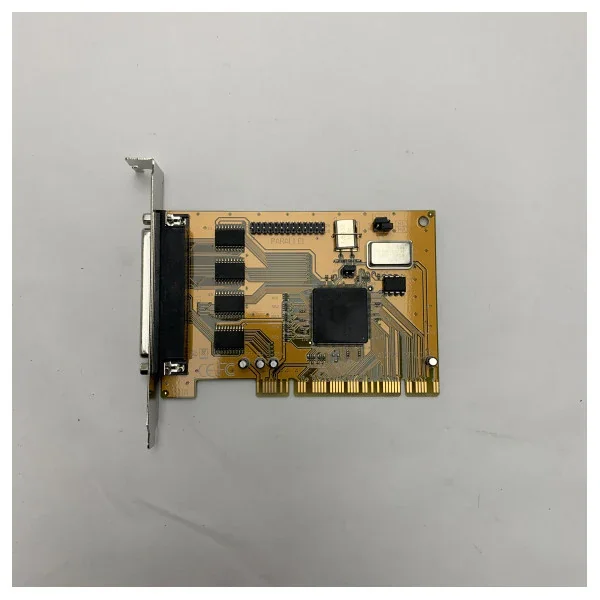

Expand your PC, workstation or server easily with additional communication ports thanks to the EXSYS EX-41094. This powerful PCI card adds four fast RS-232 serial ports and one parallel SPP port. Ideal for connecting peripherals such as modems, printers, scanners and other industrial devices.
The EX-41094 is fully Plug-and-Play compatible and is automatically recognized by the system, making installation quick and hassle-free. The card is equipped with a high-quality 16C950 UART chip with a 128 byte FIFO buffer, ensuring reliable and efficient data transfer.
Features
- Adds 4 extra serial RS-232 ports to your system.

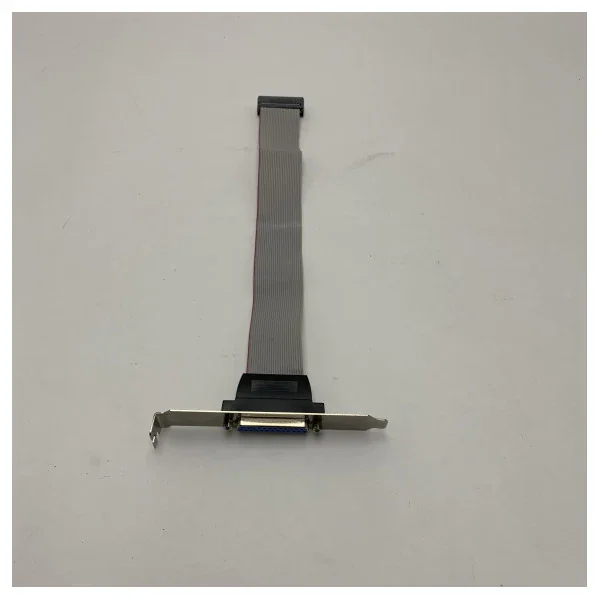

- Includes 1 parallel SPP (Centronics) port.
- PCI and PCI-X compatible for wide applicability.
- Plug-and-Play installation.
- Supports IRQ Sharing for conflict-free operation.
- Designed for 5V and 3.3V motherboards.

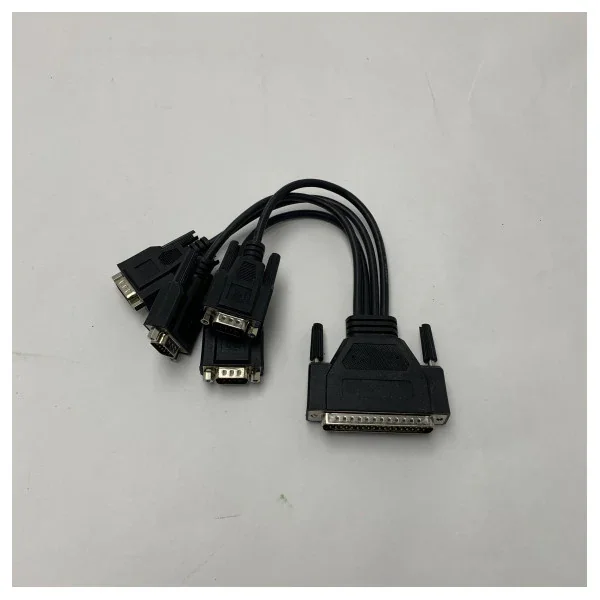

- Includes 'octopus' cable for the serial ports.
Specifications
- Interface: PCI / PCI-X, 32-bit, 33MHz
- Number of ports: 4 x Serial (RS-232, 9-pin D-Sub) and 1 x Parallel (Centronics, 25-pin D-Sub)
- Chipset: 16C950 UART with 128 byte FIFO
- Data rate: Up to 921.6 Kbps (serial)
- Operating systems:
- Windows: 98SE, NT 4.0, ME, 2000, XP, Vista, 7, 8 (32- and 64-bit)
- Linux
- Operating temperature: 0°C to 55°C
- Power: 3.3V or 5V via PCI slot
- Dimensions: 120 x 76 mm
