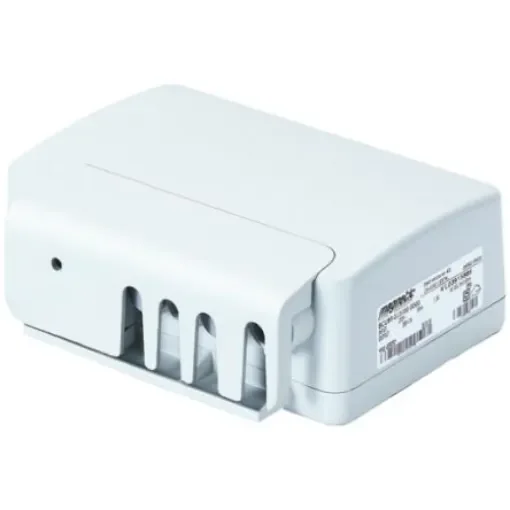

Ewellix Makers in Motion Control Unit for Use with MAX30 Series, 170mm Length, 230 V ac - BCU83-2H-3100-000 MAX30
Compact 3-channel control unit for SKF linear actuators with built-in safety features.
Manufacturer part number: BCU83-2H-3100-000 MAX30
EN 60601-1 / UL 60601-1. SKF MATRIX Series MAX Linear Actuator Controller. The Matrix series MAX-3 channel controller (BCU control unit) can accommodate up to three SKF 24 V dc linear actuators. The Controller features a built-in power supply and incorporates microprocessor technology. It also offers three motor outputs (DIN8) for actuators, and an HD15 input for the Hand Switch ( ; 764-3468 764-3468 ). The SKF Hand Switch plugs directly into the BCU Control Unit. The Matrix Series MAX Controller draws little current while on standby and has been designed for a long service life. It is lightweight, compact, incorporates overload and over-temperature protection, and is easy to keep clean. Features and Benefits. Compact 3-channel actuator control unit Single fault safety Overload and over-temperature protection Easy to clean Low standby Current Long lifetime – 100,000 cycles. Product Application Information. Approved for medical applications.
