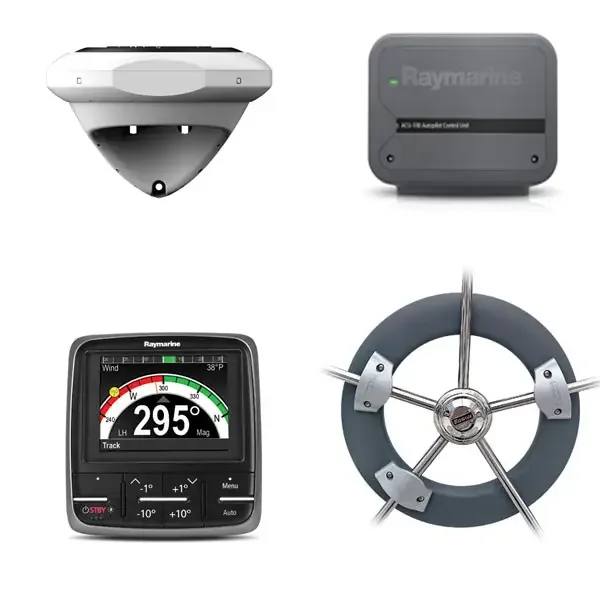

The EV-100 wheel pilot system features a fully enclosed wheel control unit for easy installation and superb autopilot performance. It includes:
- a central sensor EV-1
- an AC-100 pilot control unit
- a P70s control panel
- a wheel adapter
- a Setalk Ng wiring kit
This product will easily find its place in the cockpit of your sailing boat
It is suitable for a maximum displacement of 7500 kg)
THE CENTRAL SENSOR EV-1
At the centre of each Evolution system is the central sensor EV, a 9-axis sensor that monitors the movements of the vessel in three dimensions.
The central sensor EV is a major innovation that combines cutting-edge transistorized sensors and an Evolution autopilot processor in a single housing.Install the central sensor EV on or under the deck, the robust housing is completely sealed and meets IPX6 and IPX7 waterproof and immersion standards.
Advantages of the central EV sensor
Continuous precise control of heading, pitch, roll, and yaw allowing the autopilot to instantly account for navigation conditions and changes in the vessel's dynamics.
No installation options. Mount on or under the deck.
Simple and direct SeaTalk connectivity to the control panel and autopilot computer.
The transistorized sensor technology offers dynamic accuracy of less than 2 degrees regardless of navigation conditions.
Automatic compensation for the vessel's magnetic fields and reliable heading accuracy under extreme northern and southern latitudes.
Fast and secure heading data for MARPA modes, radar image overlay, and heading on Raymarine multifunction displays.
Autopilot Control Panel (ACU-100)
The robust control panel (ACU) provides reliable and stable power to both the autopilot and the SeaTalkng bus.
P70S CONTROL PANEL
The Raymarine P70s is a control panel for autopilot. On a 3.5" anti-glare screen, the latest technology LED backlighting enhances colours and contrast while saving energy.
The Raymarine P70s features +/- 1° to +/-10° buttons for easier heading selection.
The interface is simpler and allows you to quickly access all information.
WHEEL PILOT
The EV-100Wheel pilot includes a full MK2 transmission for easy installation and superb performance even in rough seas.
Quick and easy installation
Simple and robust clutch engagement mechanism
Recommended maximum weight of the boat under load: 7,500 kg
SEATALK NG WIRING KIT
This kit includes the following items:
- 2 - SeaTalk Terminations
- 2 - SeaTalk T-connectors
- 1 - Power cable (0.4m)
- 1 - Main SeaTalk cable (5 m)
- 1 - SeaTalk branch cable (0.4m)
- 1 - 5-pin SeaTalk connection block
Your Evolution Autopilot System
EV-1 systems with Raymarine power units
EV-1 is designed for mechanical or hydraulic Evolution autopilot systems.
The SeaTalkng networking allows the connection of a single cable for power and data transmission to the Evolution control panel and SeaTalkng and NMEA2000 networks.
