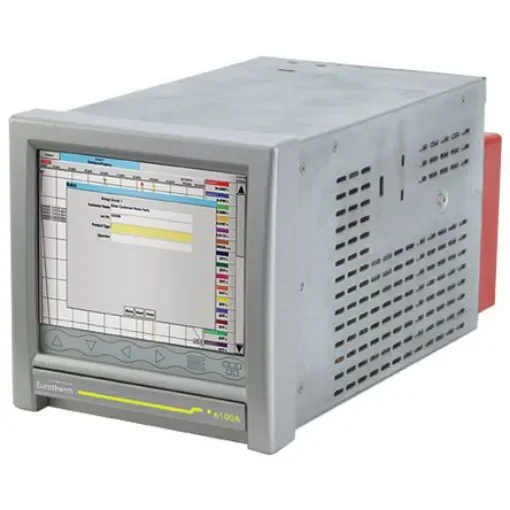

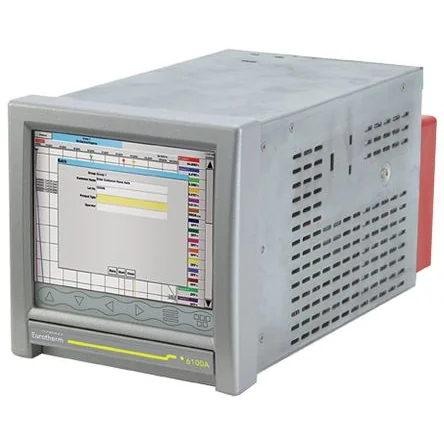

Eurotherm 6100A, 18 Input Channels, Paperless Chart Recorder Measures Current, Millivolt, Resistance, Voltage - 6100A/U18/PANEL/NOLCK/ALITE/06GROUP
The Eurotherm 6100A is an 18-channel paperless chart recorder for measuring current, voltage, and resistance.
Manufacturer part number: 6100A/U18/PANEL/NOLCK/ALITE/06GROUP
Availability: Out of stock
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Chart Type = Paperless
Number of Inputs = 18
Parameter Measured = Current, Millivolt, Resistance, Voltage
Maximum Current Measurement = 20mA
Maximum Operating Voltage = 265V ac
Maximum Voltage Measurement = 10V
Model Number p = 6100A
IP Rating = IP66
Battery Type = LithiummO
Eurotherm Chart RecorderThe Eurotherm 6100A is an 18-channel paperless videographic chart recorder used to measure the current, millivolt, voltage, resistance, temperature. This is a paperless recorder with operating voltage that ranges between 85Vac and 265Vac. It offers unrivalled input accuracy with a 125ms total sample rate and input channels are freely configurable to suit your process requirements. Each instrument has an intuitive, 5.5in 1/4VGA touchscreen display to enable operators to clearly view process data in varying formats. Data is stored in a tamper-resistant binary format that can be used for secure, long-term records of your process.Features and BenefitsAdaptive recording Advanced functionality like math and logic, batch recording and flow totalization Custom graphic displays Ethernet TCP/IP and MODBUS RTU network connection Secure data recording Up to 96MB non-volatile flash memory Math functions, totalizers, timers, counters Time synchronization (SNTP) Audit Trail functionalityApplicationsMonitor and measure current, millivolt, resistance and voltageCertificationsIP66 rated
