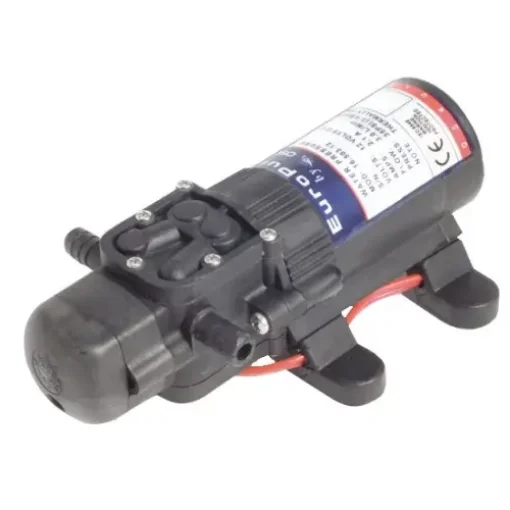

SELF-PRIMING WATER PUMP - EUROPUMP 4 - OSCULATI
Can operate dry without deteriorating.
Without vibrations, very quiet.
Can supply 2 taps simultaneously.
Thermal protection against overloads.
TECHNICAL SPECIFICATIONS
| Reference | Consumption | Pressure switch - version | Pressure switch - calibrated at | Flow l/m | Connector Ø mm | Max dimensions mm | Pressure switch spare parts |
|---|
| 16.503.12 | 2 A | automatic | 2.8 BAR / 40 PSI | 3.8 | 10 | 170x100x60 | 16.540.01 |
IMPORTANT INFORMATION
Never install the autoclave as shown in the following image, that is to say on a vertical partition, with the motor facing down
This position could burn the motor in a very short time due to possible leaks in the O-rings of the drive shaft.
