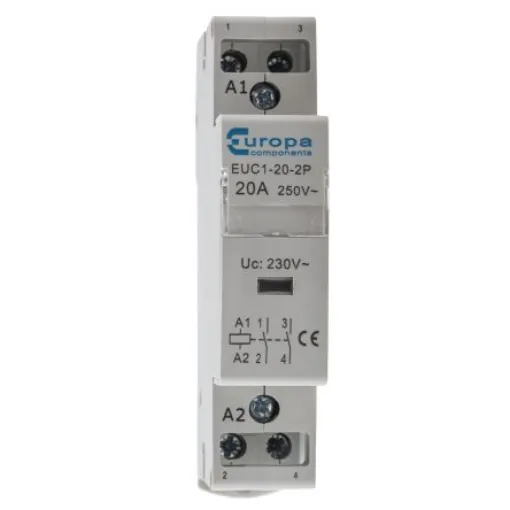

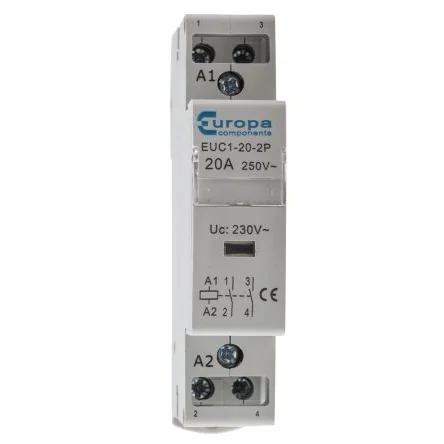

Europa EUC1 Contactor, 230 V ac Coil, 2-Pole, 20 A, 4 kW, 2NO, 240 V ac - EUC1-20-2P
Reliable 2-pole contactor for heating and lighting applications, rated at 20A and 230V AC.
Manufacturer part number: EUC1-20-2P
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coil Voltage = 230 V ac
Number of Poles = 2
Contact Voltage Rating = 240 V ac
Contact Current Rating = 20 A
Series = EUC1
Normal State Configuration = 2NO
Terminal Type = Screw
Length = 18mm
Depth = 68mm
Pole and Throw Configuration = DPST
Modular contactors should be separated from other components using blanking modules to allow for heat dissipation. Europacomponents EUC1 Series Modular Contactor. 2 Pole Operating temperature: -5°C to 40°C 35mm DIN Rail mounting Maximum cable capacity main terminals: 10 mm² Maximum cable capacity coil terminals: 2.5 mm². Europa Components EUC1 series 2 pole modular contactors. These units are DIN Rail mounted and designed for installation in consumer units and three phase distribution boards. Ideal for heating lighting and building service type applications.
