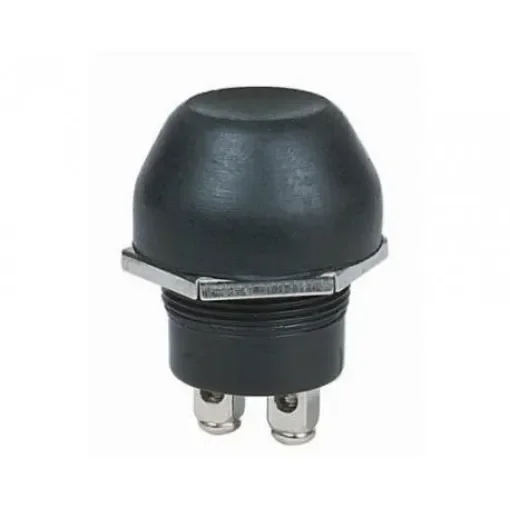

The Euromarine Waterproof Pushbutton Switch 20A Ø22MM is engineered for reliable operation in marine environments, offering a robust solution for controlling electrical systems on boats.
- Waterproof Design: Certified with an IP67 rating, ensuring protection against dust and immersion in water up to 1 meter.
- Dual Positions: Features two positions: OFF and MOM (Momentary), allowing for versatile control.
- High Current Capacity: Supports up to 20 Amps at 12 Volts, suitable for various marine electrical applications.
- LED Illumination: Equipped with a bright white LED that illuminates when the circuit is closed, enhancing visibility and safety.
- Customizable Identification: Comes with a sheet of 50 pictograms, enabling easy labeling of functions for user convenience.
Technical Specifications:
- Current Rating: 20 Amps at 12 Volts.
- Voltage Rating: 10 Amps at 24 Volts.
- Mounting Dimensions: Flush-mounted with dimensions of 21 x 36 mm, compatible with various dashboards.
- Connection Type: Utilizes 6.3 mm clip connections for straightforward installation.
- Barrel Length: 10 mm.
- Drilling Diameter: 22 mm.
Materials:
- Housing: Constructed from durable materials to withstand marine conditions.
- Lens: Clear lens for LED illumination.
Dimensions:
- Overall Dimensions: Flush-mounted with dimensions of 21 x 36 mm.
- Barrel Length: 10 mm.
- Drilling Diameter: 22 mm.
Compatibility Information:
Designed for marine electrical systems, this switch is suitable for various boat dashboards and control panels.
