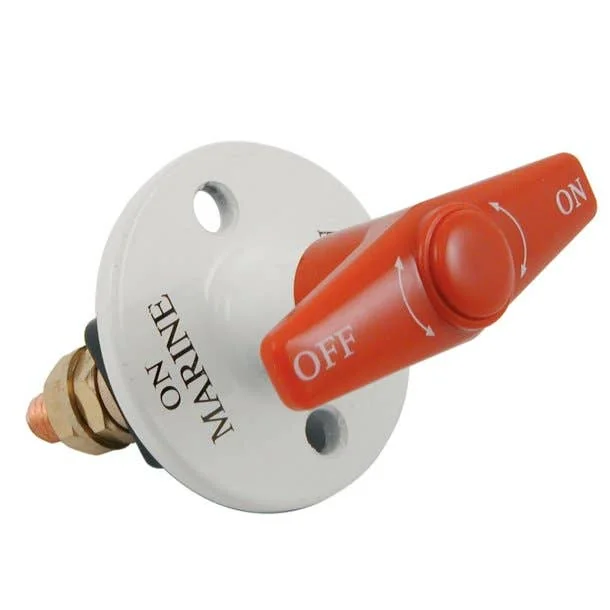

The Euromarine Single-Pole Battery Switch with Handle 300A is a robust and reliable device designed for efficient battery management in marine applications. This switch allows for easy disconnection of the battery circuit, enhancing safety and preventing battery drain when not in use.
- Voltage Range: Operates within a voltage range of 12 V to 48 V DC, accommodating various marine electrical systems.
- Current Capacity:
- Continuous Capacity: Handles continuous loads up to 300 A at 12 V, ensuring reliable power management during regular operation.
- Momentary Capacity: Supports momentary loads up to 700 A at 12 V for 10 seconds, providing the necessary power during transient conditions.
- Handle Design: Equipped with a handle for easy operation, allowing users to quickly and securely disconnect the battery circuit.
- Mounting Specifications:
- Dimensions: Compact design with dimensions of 68 mm in length, 68 mm in width, and 77 mm in height, facilitating straightforward installation in confined spaces.
- Hole Spacing: Standard mounting hole spacing of 56 mm, compatible with common installation setups.
- Mounting Hole Diameter: Features 5 mm mounting holes with 8 mm nuts, ensuring a secure fit during installation.
- Cable Connections: Designed for use with M10 solder terminals, suitable for 25 mm² (part no. 000127) or 35 mm² (part no. 000129) cables, allowing for flexible and secure cable connections.
Materials:
- Body Construction: Constructed with a reinforced stainless steel body, offering enhanced durability and resistance to corrosion, making it suitable for harsh marine environments.
- Contacts: Fitted with 9 mm-diameter copper bolts, ensuring exceptional conductivity and reliable performance.
Compatibility Information:
This battery switch is compatible with 12 V to 48 V DC electrical systems, making it suitable for a wide range of marine applications, including boats and yachts. Its design allows for easy integration into existing electrical setups, providing a straightforward solution for battery management.
