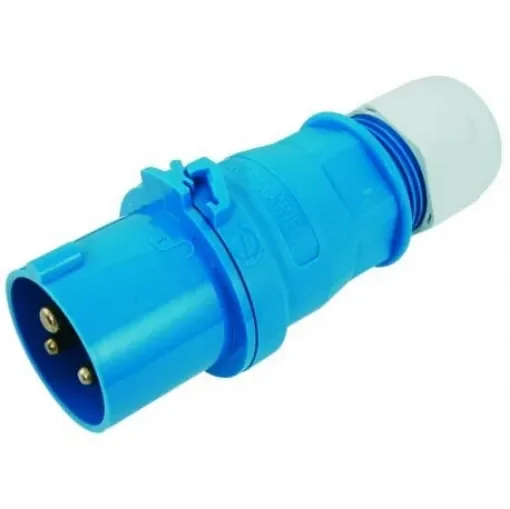

The Male Plug P17 16A by Euromarine is a high-quality electrical connector designed for marine environments, ensuring safe and reliable power connections on board.
- Quick Connect System: Enables tool-free connection for swift and secure installations.
- Autolock Closure: Features a 1/4-turn autolock system for a tool-free, secure closure.
- Multi Grip System: Incorporates an IP67-rated cable gland combined with an automatic locking cable clamp, providing enhanced protection against water and dust ingress.
- Raised Earth Terminals: Designed with elevated earth terminals to increase safety during operation.
- Temperature Resistance: Suitable for use in temperatures ranging from -25°C to +40°C.
Technical Specifications
- Voltage: 230 V AC
- Current Rating: 16 A
- Number of Poles: 2P+T (Two Poles and One Earth)
- Ingress Protection: IP67
- Compliance Standards: NF EN 60 309-1/2, IEC 60 309-1/2, Decree of 14/11/88 for the protection of workers against electric currents
Materials
- Body, Skirts, and Shutters: Polyamide 6
- Pins/Cells/Terminals: Copper-plated brass (Cu Zn 39 P 63)
- Springs: Nickel-chromed stainless steel
- External Screws: Stainless steel
- Supports for Active Parts: Polyamide rated for temperatures from -25°C to +40°C
Dimensions
- Length: Approximately 13 cm
- Diameter: Approximately 6 cm
Compatibility Information
This plug is compatible with standard 230 V AC marine power systems and is designed to connect to public shore power outlets equipped with a matching P17 female socket.
