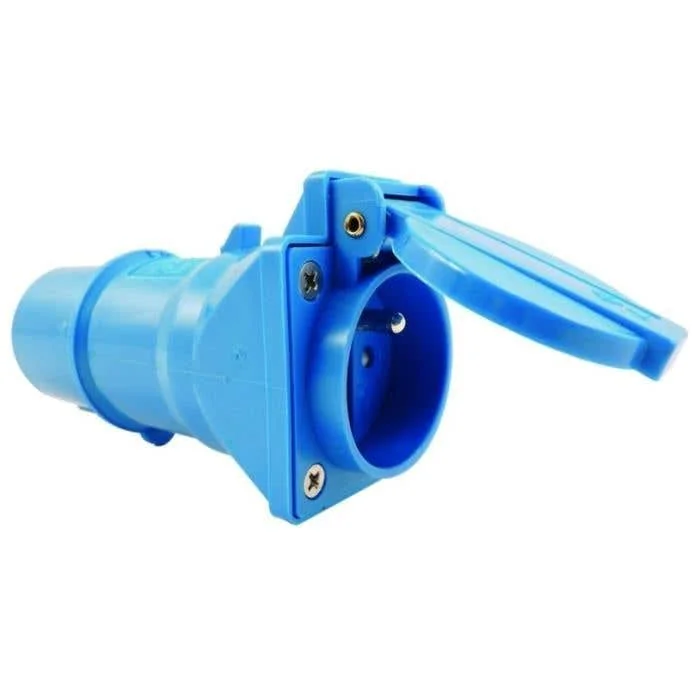

The Male P17 Plug and Female Socket Adapter by Euromarine is designed to provide a secure and waterproof electrical connection for marine applications. This monobloc adapter features a male P17 plug and a female socket, ensuring compatibility with standard P17 connectors commonly used in boating environments.
Key Features:
- Waterproof Design: Ensures reliable performance in wet conditions, protecting against water ingress.
- Secure Locking Mechanism: The male plug's lugs press against triangular markings on the female socket, locking the connection in place. To release, simply rotate the plug a quarter turn.
- Voltage Indicator Light: Equipped with a luminous voltage indicator to confirm the presence of voltage.
- Fuse Protection: Includes a 15A glass fuse (6.3 x 32 mm) for added safety.
Technical Specifications:
- Current Rating: 16A
- Voltage Rating: 230V
- Number of Pins: 3
- Number of Poles: 2P+T (Two Poles and One Earth)
- Material: ABS (Acrylonitrile Butadiene Styrene) for the female socket
- Cable Entry Diameter: M25
Dimensions:
- Female Socket:
- Height: 131 mm
- Width: 93 mm
- Depth: 139 mm
Compatibility Information: This adapter is compatible with standard P17 connectors, commonly used in marine environments for secure and waterproof electrical connections.
