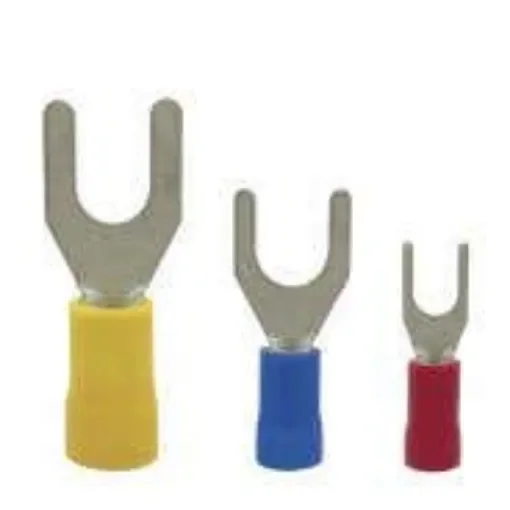

The Euromarine Fork Terminal Set includes 10 terminals in three sizes, designed for reliable and secure electrical connections in marine environments. The set comprises:
- 4 red terminals for wire diameters of 0.5 to 1 mm²
- 4 blue terminals for wire diameters of 1.5 to 2.5 mm²
- 2 yellow terminals for wire diameters of 3 to 6 mm²
Key Features:
- Versatile sizes accommodate a range of wire diameters
- Designed for marine applications, ensuring durability and corrosion resistance
- Easy to use, facilitating quick and secure electrical connections
Technical Specifications:
- Wire Compatibility:
- Red terminals: 0.5 to 1 mm²
- Blue terminals: 1.5 to 2.5 mm²
- Yellow terminals: 3 to 6 mm²
- Material: Highly corrosion-resistant materials suitable for marine environments
- Insulation: Pre-insulated with PVC for enhanced safety and durability
- Operating Temperature Range: -20°C to +115°C
Dimensions:
- Red Terminals:
- Screw Diameter: M3
- Width (B): 5.5 mm
- Length (L): 19.5 mm
- Insulation Entry (D): 3.2 mm
- Insulation Length (N): 4 mm
- Insulation Thickness (A): 1.8 mm
- Cable Stripping Length: 4.6 mm
- Gross Weight: 0.68 g
- Blue Terminals:
- Screw Diameter: M3.5
- Width (B): 6.4 mm
- Length (L): 20.3 mm
- Insulation Entry (D): 3.7 mm
- Insulation Length (N): 3.8 mm
- Insulation Thickness (A): 1.8 mm
- Cable Stripping Length: 4.6 mm
- Gross Weight: 0.7 g
- Yellow Terminals:
- Screw Diameter: M4
- Width (B): 6.5 mm
- Length (L): 21.2 mm
- Insulation Entry (D): 4.3 mm
- Insulation Length (N): 3.7 mm
- Insulation Thickness (A): 1.8 mm
- Cable Stripping Length: 4.6 mm
- Gross Weight: 0.66 g
Compatibility Information:
These terminals are compatible with copper conductors and are suitable for various marine electrical applications, ensuring secure and reliable connections.
