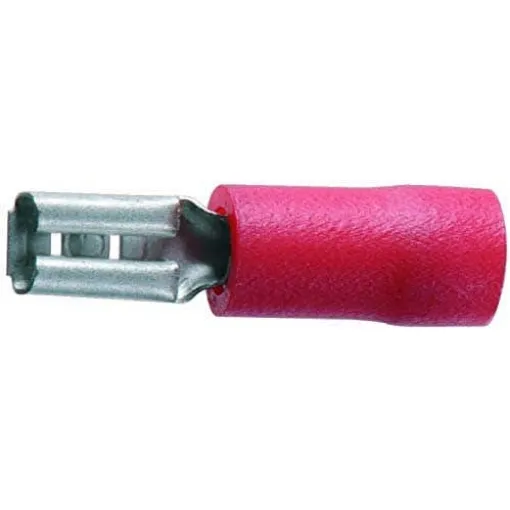

The Euromarine 2.8mm Hi-Fi Red Female Crimp Terminal Pack of 10 is designed for secure and reliable electrical connections in marine and automotive applications. These pre-insulated crimp terminals are ideal for connecting cables with cross-sectional areas between 0.5 and 1.5 mm².
- Pre-Insulated Design: Each terminal is pre-insulated with self-extinguishing PVC, rated UL 94-V0, ensuring safety and durability.
- Tinned Brass Construction: Made from tinned brass, these terminals offer excellent conductivity and resistance to corrosion.
- Operating Temperature: Suitable for use in temperatures ranging from -10°C to +75°C, accommodating various environmental conditions.
- Compatibility: Designed for cables with cross-sectional areas between 0.5 and 1.5 mm², making them versatile for different wiring needs.
Technical Specifications
- Tab Size: 2.8 mm x 0.8 mm
- Insulation Material: Self-extinguishing PVC, UL 94-V0 rated
- Contact Material: Tinned Brass
- Operating Temperature Range: -10°C to +75°C
- Cable Compatibility: 0.5 to 1.5 mm²
Materials
- Conductor: Tinned Brass
- Insulation: Self-extinguishing PVC, UL 94-V0 rated
Dimensions
- Tab Size: 2.8 mm x 0.8 mm
- Insulated Sleeve Length: Approximately 10 mm
Compatibility Information
These terminals are compatible with cables having cross-sectional areas between 0.5 and 1.5 mm², making them suitable for various marine and automotive wiring applications.
