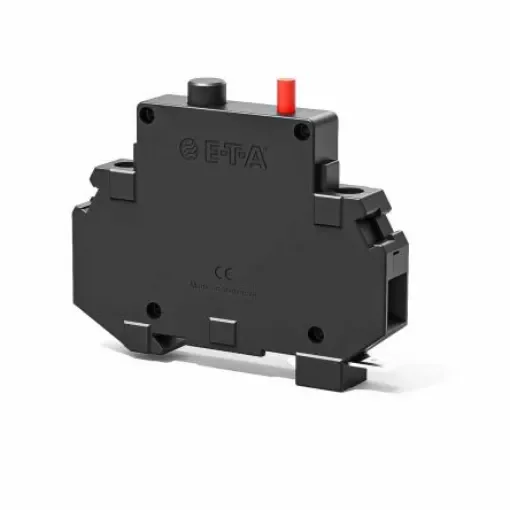

ETA Thermal Magnetic Circuit Breaker - 201 Single Pole, 500mA Current Rating - 201-0.5A

Current Rating = 500mA
Number of Poles = 1
Width = 80mm
Series = 201
Reset Actuator Type = Button

UL, CSA, VDE, Demko, ABS, BV, LRoS. DIN Rail Mount, 201 Series. Single-pole thermal/magnetic circuit breakers which may be housed in any of the modular DIN 43 880 enclosures (refer to the Enclosures Sections). The speed of operation together with the availability of low current ratings offer the possibility of finely tuned performance not achievable with other forms of protection. Close tolerance overload characteristics for professional equipment/system protection Twin button operation (black reset/red trip) Trip-free/tease-free operation Only 12·5mm wide (compared to standard MCBs 17·5mm) Approved for 250V a.c./65V d.c. operation IEC Classification M/TM Breaking Capacity: 200A (up to 2A), 400A (3A and above)
