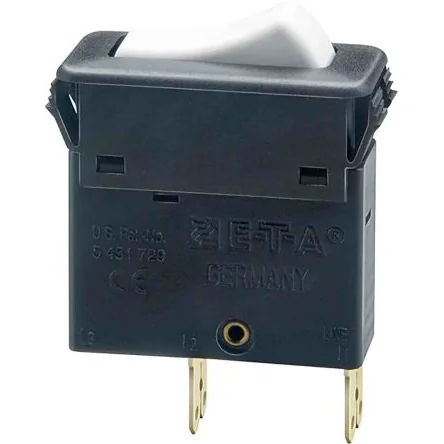

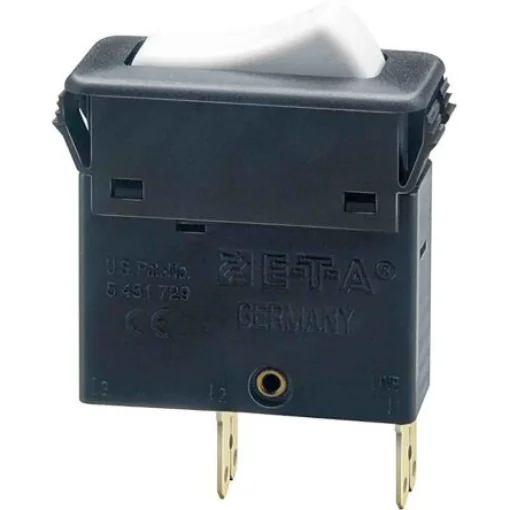

ETA Thermal Circuit Breaker - 3130 Single Pole 240V Voltage Rating Snap In, 10A Current Rating - 3130-F110-P7T1-W02Q-10A

Current Rating = 10A
Number of Poles = 1
Voltage Rating = 240V
Width = 14.5mm
Series = 3130
Tripping Mechanism = Thermal
Reset Actuator Type = Rocker
Rated AC Voltage = 240V
Mounting Style = Snap In
Overall Length = 34mm

UL; CSA; VDE (EN 60934). 3130 Series Thermal Circuit Breaker. Rocker switch and thermal circuit breaker (CBE) combined Trip-free mechanism Snap-in panel mounting Panel thickness 1 to 2.5 mm Blade terminals DIN 46244-C-Ms-S Overload protection on all poles (multi-pole) Typical life 30000 operations at nominal current rating Main applications for motors, white goods industries, portable hand tools and transformers IEC Classification S/TO
