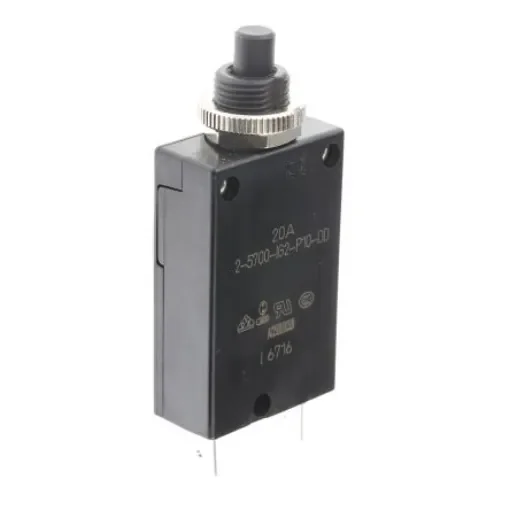

ETA Thermal Circuit Breaker - 2 5700 Single Pole 250V Voltage Rating Panel Mount, 20A Current Rating - 2-5700-IG2-P10-DD-000040-20A

Number of Poles = 1
Voltage Rating = 250V
Rated AC Voltage = 250V
Mounting Style = Panel Mount
Overall Depth = 46.5mm

UL; CSA; VDE (EN60934). 2-5700 Series Thermal Circuit Breaker. 3/8 inch or M12 (mm) moulded thread-neck single-hole panel mounting 6.3-0.8 mm blade terminals Small physical size Tease free, Trip free mechanism for long life Push to release/push to reset On/off status indication Overload and short circuit protection Typical life 5000 operation at twice nominal current rating Mainly for motors, transformers, power supplies and extra low voltage systems IEC Classification S/TO
