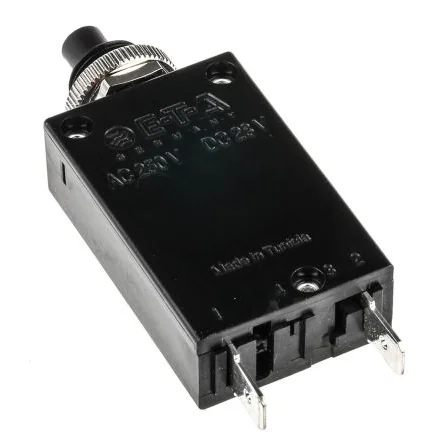

ETA Thermal Circuit Breaker - 2 5700 Single Pole 250V Voltage Rating Panel Mount, 10A Current Rating - 2-5700-IG2-P10-DD-000040-10A

Current Rating = 10A
Number of Poles = 1
Voltage Rating = 250V
Width = 15.7mm
Series = 2 5700
Tripping Mechanism = Thermal
Reset Actuator Type = Button
Rated AC Voltage = 250V
Mounting Style = Panel Mount
Rated DC Voltage = 50V

UL; CSA; VDE (EN60934). 2-5700 Series Thermal Circuit Breaker. 3/8 inch or M12 (mm) moulded thread-neck single-hole panel mounting 6.3-0.8 mm blade terminals Small physical size Tease free, Trip free mechanism for long life Push to release/push to reset On/off status indication Overload and short circuit protection Typical life 5000 operation at twice nominal current rating Mainly for motors, transformers, power supplies and extra low voltage systems IEC Classification S/TO
