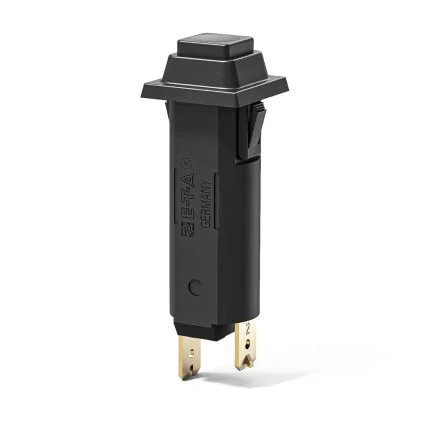

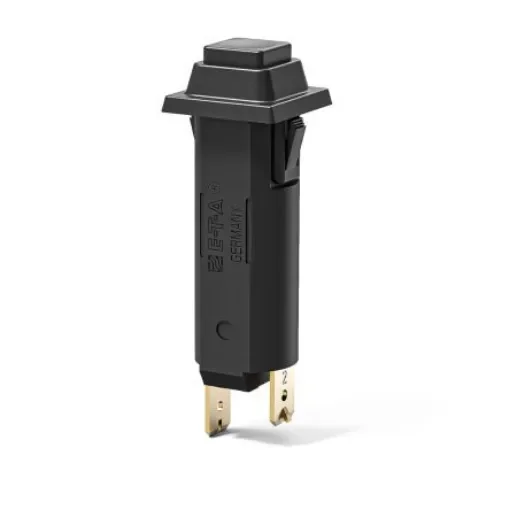

ETA Thermal Circuit Breaker - 1110 Single Pole 250V Voltage Rating Panel Mount, 500mA Current Rating - 1110-F112-P1M1-0.5A
Reliable thermal circuit breaker for panel mounting, rated at 500mA and 250V.
Manufacturer part number: 1110-F112-P1M1-0.5A
GTIN: 5059045899921
Current Rating = 500mA
Number of Poles = 1
Voltage Rating = 250V
Width = 19mm
Series = 1110
Tripping Mechanism = Thermal
Reset Actuator Type = Button
Rated AC Voltage = 250V
Mounting Style = Panel Mount
Circuit Breaker Type = Thermal Circuit Breakermm
UL; CSA and VDE. 1110 Series. Front panel snap-in mounting, standard fuse holder cut-out dimensions 6.3-0.8 blade terminals Square black pushbutton switch/circuit breaker Tease free/trip free mechanism (typical response time 20 to 30 seconds at twice nominal current rating) Visual indication in tripped/off position Typical life 300 operations at twice nominal current rating Mainly for motors, transformers and power supplies IEC Classification S/TO
