Key Features:

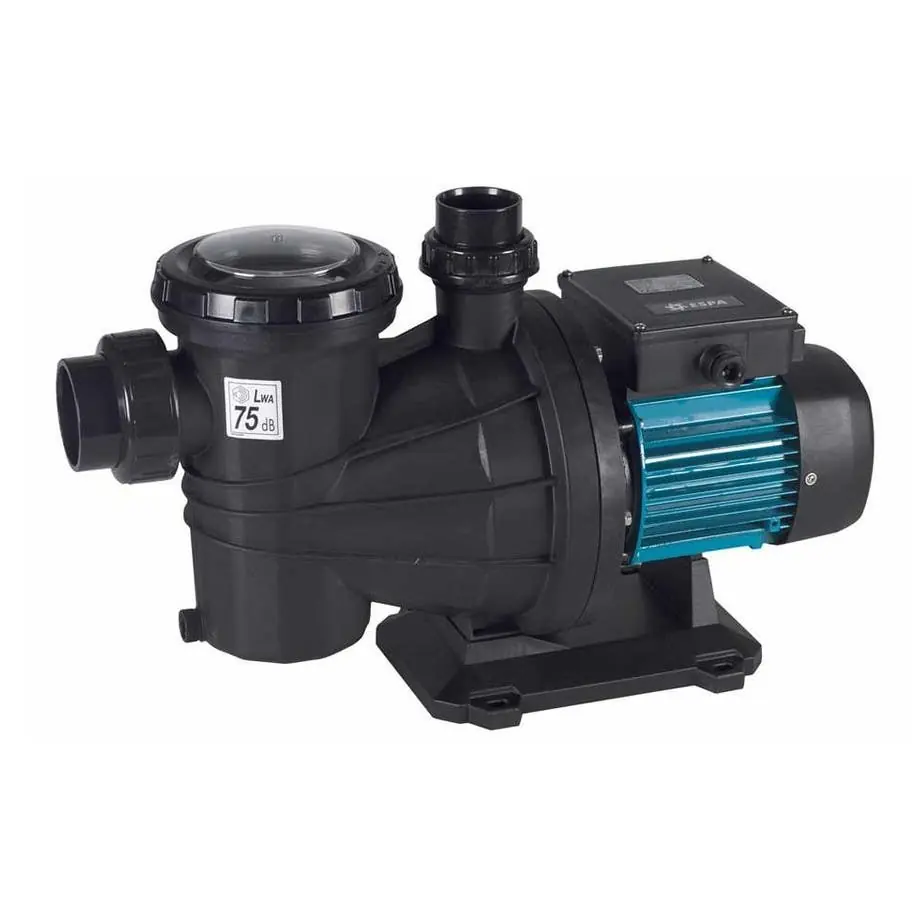

- Self-Priming Pump: Designed for automatic priming, facilitating easy startup.
- Transparent Cover: Allows for visual inspection of the pre-filter.
- Quiet Operation: Engineered to operate with minimal noise for a comfortable environment.
- Safety Lock System: Equipped with a "Safety Lock" cover closure system to ensure secure operation.
- Easy Maintenance: Includes a cover key for convenient access and maintenance.
Technical Specifications:
- Power Supply: Available in both single-phase and three-phase models.
- Flow Rates: Depending on the model, flow rates range from 10 m³/h to 22 m³/h.
- Power Consumption: Models range from 0.44 kW (0.6 HP) to 1.5 kW (2 HP).
- Current Draw: Single-phase models draw between 3 A and 7.1 A; three-phase models draw between 1.3 A and 2.8 A.
- Inlet and Outlet Connections: Both are 63/50 mm (2 ½" / 2") for suction and discharge, respectively.
Materials:
- Pump Body: Glass fiber-reinforced polypropylene for enhanced durability.
- Impeller: Glass fiber-reinforced Noryl, offering high dimensional stability and low shrinkage.
- Diffuser: Glass fiber-reinforced polypropylene.
- Motor Shaft: Stainless steel AISI 420 for corrosion resistance.
Dimensions and Weight:
- Silver 10M Model:
- Dimensions: 544 mm (L) x 336 mm (W) x 238 mm (H)
- Weight: 9.1 kg
- Silver 12M Model:
- Dimensions: 544 mm (L) x 336 mm (W) x 238 mm (H)
- Weight: 9.4 kg
- Silver 15M Model:
- Dimensions: 544 mm (L) x 336 mm (W) x 238 mm (H)
- Weight: 10.7 kg
- Silver 18M Model:
- Dimensions: 544 mm (L) x 336 mm (W) x 238 mm (H)
- Weight: 11.4 kg
- Silver 22M Model:
- Dimensions: 565.5 mm (L) x 336 mm (W) x 238 mm (H)
- Weight: 13.5 kg
Compatibility Information:
- Salt Treatment and Seawater: Compatible with saltwater pools and seawater applications.
- Chemical Treatments: Suitable for pools treated with salt electrolysis, ozone, chlorine, or demineralized water.
Additional Details:
- Warranty: Comes with a 2-year warranty.
- Maintenance Features: Equipped with a pre-filter with a capacity of up to 5.25 liters, facilitating easy maintenance.
- Installation: Designed for easy installation with detachable connections for quick assembly and disassembly.
