Key Features:
- Constructed from high-quality stainless steel (Inox 304) for enhanced durability and resistance to corrosion.

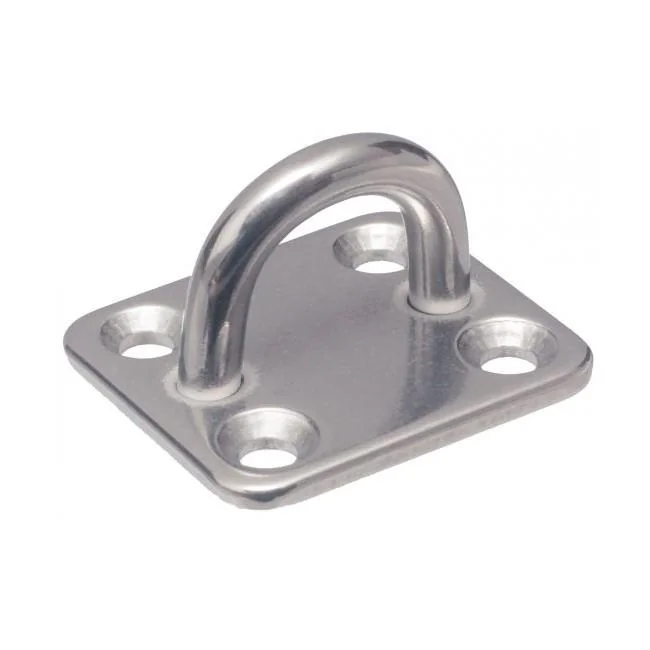

- Designed for the attachment of tensioners or clevises to flat surfaces, providing a secure anchoring point.
- Suitable for both indoor and outdoor applications, excluding marine environments and chlorinated areas like swimming pools.
Technical Specifications:
- Diameter of Pontet (D): 6 mm
- Platine Dimensions:
- Length (L): 35 mm
- Width (B): 30 mm
- Hole Dimensions:
- Inner Diameter (iD): 12 mm
- Bolt Diameter (BD): 4.5 mm
- Thickness (S): 3 mm
Materials:
- Stainless Steel AISI 304 (Inox 304)
Dimensions:
- Pontet Diameter: 6 mm
- Platine Length: 35 mm
- Platine Width: 30 mm
- Hole Inner Diameter: 12 mm
- Hole Bolt Diameter: 4.5 mm
- Thickness: 3 mm
Compatibility Information:
- Ideal for creating an anchoring point in humid environments, suitable for installation on floors, walls, or ceilings.
- Not recommended for use in marine environments or areas with chlorinated water, such as swimming pools.
Additional Details:
- To ensure optimal performance and longevity, it is recommended to use stainless steel screws or bolts for installation.
- The product is available for purchase through authorized retailers, such as ERMINOX.
