Key Features:
- Constructed from high-quality stainless steel (Inox A2) for enhanced durability and resistance to corrosion.

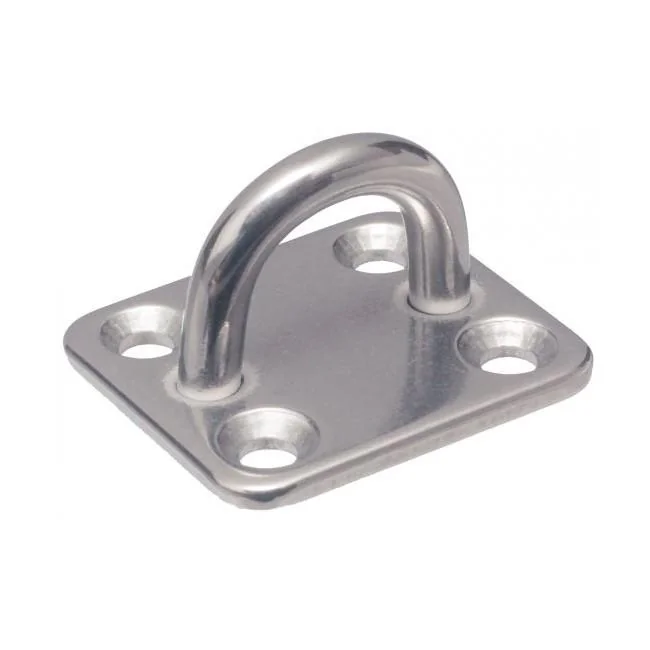

- Designed for the attachment of tensioners or clevises to flat surfaces, providing a secure anchoring point.
- Suitable for both indoor and outdoor applications, excluding marine environments and chlorinated areas.
Technical Specifications:
- Material: Stainless Steel A2 (AISI 304)
- Diameter of Pontet: 5 mm
- Platine Dimensions:
- Length: 30 mm
- Width: 35 mm
- Hole Dimensions:
- Diameter: 4.5 mm
- Center-to-Center Distance: 16 mm
- Thickness: 3 mm
Compatibility Information:
- Ideal for creating anchoring points in damp environments, such as basements or bathrooms.
- Not recommended for use in marine environments or areas with chlorinated water, as the material is not suitable for such conditions.
Additional Details:
- To install, use wood or metal screws with countersunk heads to secure the bracket to the desired surface.
- Ensure that the installation surface is flat and capable of supporting the intended load.
