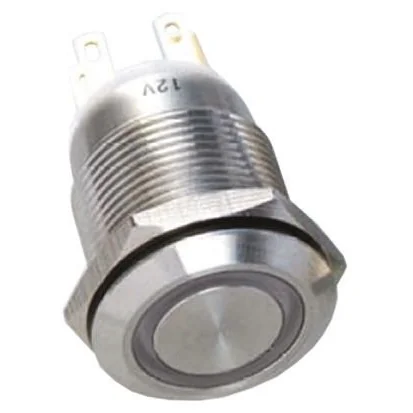

EOZ Illuminated Push Button Switch, Momentary, Panel Mount, DPDT, White LED, IP65 - R19FFSSPAGRW12

Switch Operation = Momentary
Illuminated = Yes
Mounting Type = Panel Mount
Push Button Colour = Silver
Contact Configuration = DPDT
Push Button Style = Round
LED Colour = White
IP Rating = IP65
Contact Current Rating = 5 A @ 250 V ac
Contact Material = Silver Alloy
Case Colour = Stainless Steel

R Series illuminated Anti-vandal pushbutton (19 mm). These R series are a range of 19 mm vandal resistant push buttons, ideal for use across a number of industries and applications such as:-. • Access Control systems. • Machinery and factory equipment. • Exposed public areas such as ticket machines, kiosks and vending machines. • And many more. Features and Benefits. • Vandal Resistant push buttons. • Impact resistant to IK09 – protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from approximately 200 mm above impacted surface. • Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted. • Mounted in 19mm holes. • Illuminated – ring or central dot LED illumination, available in several different colours. They will emit a light when pressed. • Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.
