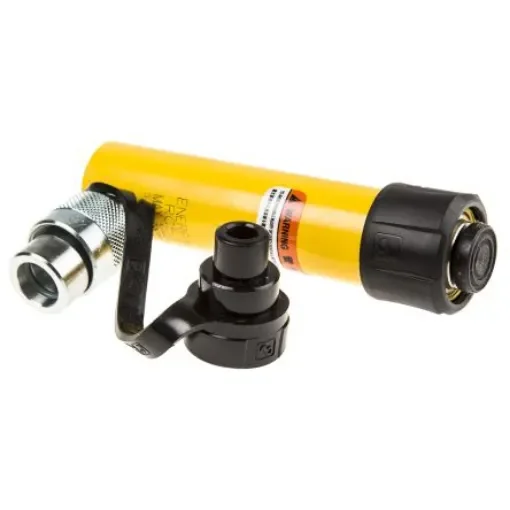

Enerpac Single, Portable General Purpose Hydraulic Cylinder, RC53, 5t, 76mm stroke

Stroke = 76mm
Capacity = 5t
Closed Height = 165mm
Single/Double Acting = Single
Manufacturer Series = RC
Extended Height = 241mm
Cylinder Effective Area = 6.5cm²
Oil Capacity = 50cm³
Outside Diameter = 38mm
Maximum Operating Pressure = 700bar
Weight = 1.5kg

Cylinder RC50 (stock no. ; 283-0780 283-0780 ) has a non-removable grooved saddle and no collar thread. All cylinder capacities are specified in US ton (short ton). 1 US ton = 907.2kg. Single-Acting, General Purpose. Enerpac RS-Series Hydraulic Cylinders are fitted with the exclusive Golden Ring design - a unique bearing design - which absorbs eccentric loads to protect the cylinder against abrasion, over-extension, and jamming for long, trouble-free operation. Cylinders are manufactured from durable high strength alloy steel, incorporate heavy-duty return springs and are finished in a baked enamel paint coat. CR-400 couplers and a dust cap is included on all Enerpac cylinder models, and cylinder life is extended through the use of plunger wipers, which reduces internal contamination. Enerpac cylinders are designed to be used in any position. Collar and plunger threads and base mounting holes (available on most models) enable the cylinders to be easily fixed in place. Replacement saddles are also available (for example: ; 283-0954 283-0954 for 10 t Enerpac units).
